24/2DT Double Fine Wire Drawing Machine with Continuous Annealer

Inlet diameter: 2*Φ0.6mm-Φ1.2mm or 2*Φ1.0mm-Φ1.6mm
Oulet diameter:2*Φ0.12mm-Φ0.35mm or 2*Φ0.19mm-Φ0.5mm
Max.number of drawing dies: 24pcs*2
零售价
0.0
市场价
0.0
数量
-
+
库存:
0
1
Details

 Product Introduction

Suitable for double wire drawing and annealing at the same time.

With advantages of high efficiency,saving energy,space and labor force.

Dual drives and motors control for take up,drawing stable,tension independent control,wire is not easily gets break.

Two options available for take up,output wire can be spooled on the same bobbin or two bobbins separately.



 Technical Parameter



Inlet diameter 2*Φ0.6mm-Φ1.2mm 2*Φ1.0mm-Φ1.6mm
Outlet diameter 2*Φ0.12mm-Φ0.35mm 2*Φ0.19mm-Φ0.5mm
Max.drawing speed 2000mpm 2000mpm
Max. number of drawing dies 24pcs*2 24pcs*2
Main machine power 22kw 30kw
Annealing power 600A*70V(42KVA) 800A*70V(56KVA)
Take up power 2.2KW*2 3.7KW*2
Correction system Automatically control Automatically control
Annealing method DC three section annealing DC three section annealing
Suitable spool PND250MM Φ250MM
Take up capacity 25KGS*2 25KGS*2
Brake Electromagnetic brake Electromagnetic brake
Machine dimension 5000L*1600W*2100H 5000L*1600W*2100H
Machine weight 4000KGS 4200KGS

 Details for your reference



S/N Components Pictures

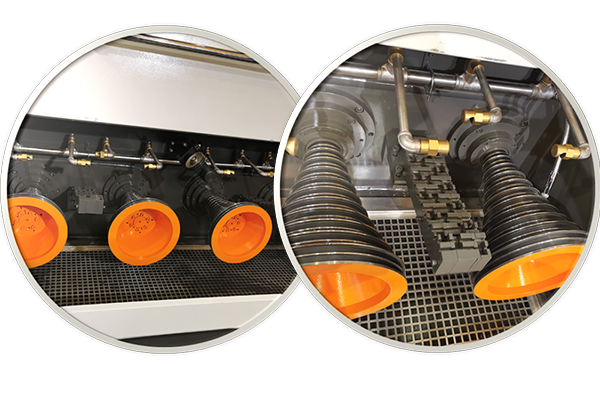

1 Drawing part

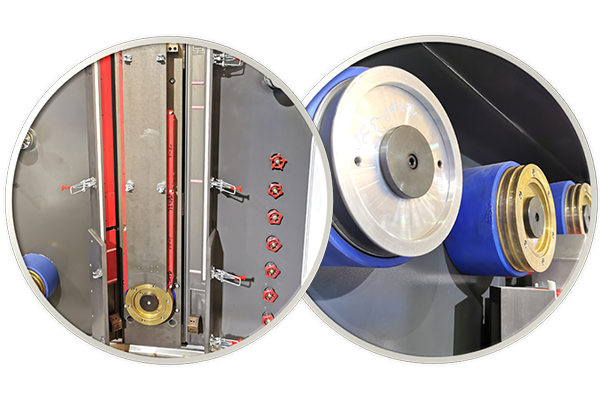

2 Annealing part

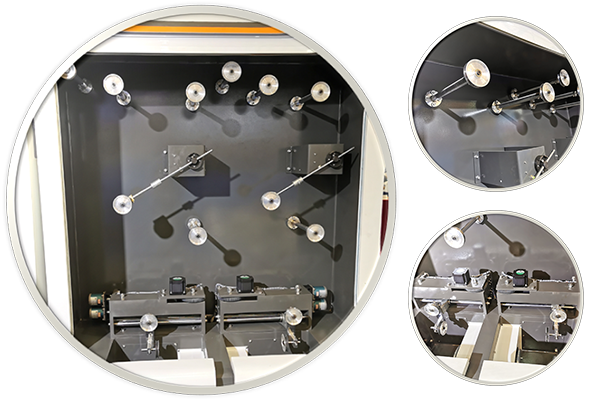

3 Take up
4 Overview
