17/2DST Multi medium wire drawing machine with annealer
2) Inlet dia.: 2×Ф2.5mm-Ф3.5mm
3) Outlet dia.: 2×Ф0.4mm-Ф1.2mm
4)Max. number of drawing dies:17pcs*2
零售价
0.0
元
市场价
0.0
元
数量
-
+
库存:
0
Details
Product introduction
1.High-precision grinding helical gear transmission, forced oil lubrication control, low noise.Full immersion lubrication design.
2.DC annealing control, annealing automatic tracking speed. Ensure that the elongation of copper wire is stable and uniform.
3.The take-up tension PID is automatically adjusted to ensure that the tension during the wire drawing process is always stable.
4.Smaller compression ratio design is more suitable for the production of large-size conductors, such as the production of wire and single conductor.
Technical parameter
| Inlet dia. | 2*Φ2.5mm-Φ3.5mm |
| Outlet dia. | 2*Φ0.4mm-Φ1.2mm |
| Max.speed | 1800mpm |
| Max.number of drawing dies | 17*2 |
| Slip ratio of M/C | 20% |
| Fix speed capstan slip ratio | 15% |
| Capstan | Tungsten coated |
| Max.capstan diameter(mm) | Φ280 |
| Frame | Welded |
| Main machine power | 90KW AC |
| Take up power | 11KW*2 |
| Correction system | Automatically control |
| Dynamic control | Double frequency converters control |
| Transmission method | By gear |
| Pay off method | Over head |
| Tension control | Weight balance by swing arm |
| Lubrication system of drawing | Immersing type |
| Suitable spool | Φ630mm/Max. |
| Take up capacity | 1200-1800 |
| Brake | Pneumatic brake |
Main Components of machine
| S/N | Components | Picture | Remark |

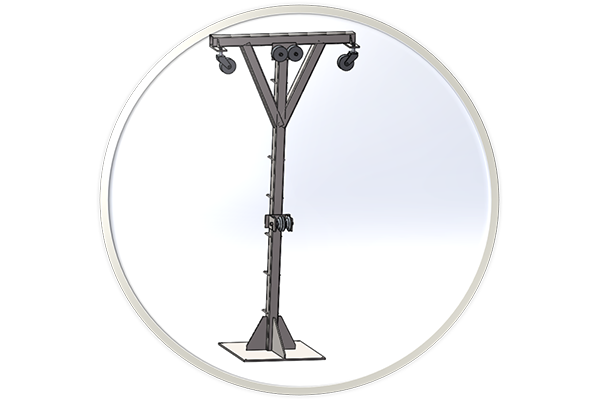

| 1 | Pay off stand |
 |
1 set |

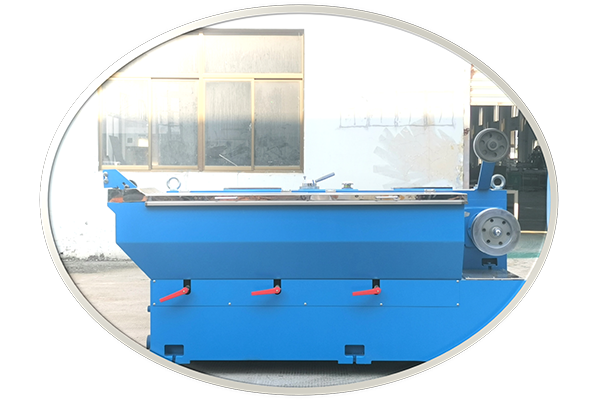

| 2 | Main machine |
 |
1 set |

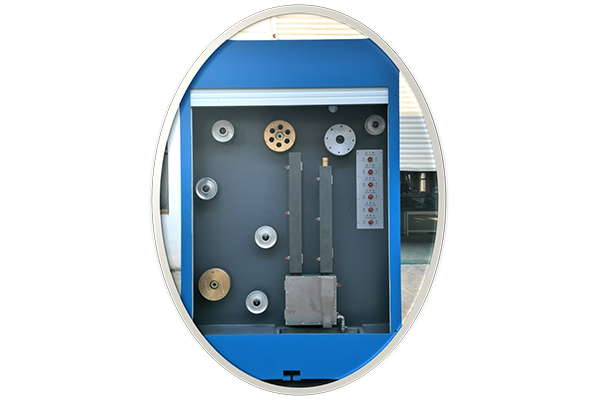

| 3 | Annealing machine |
 |
1 set |

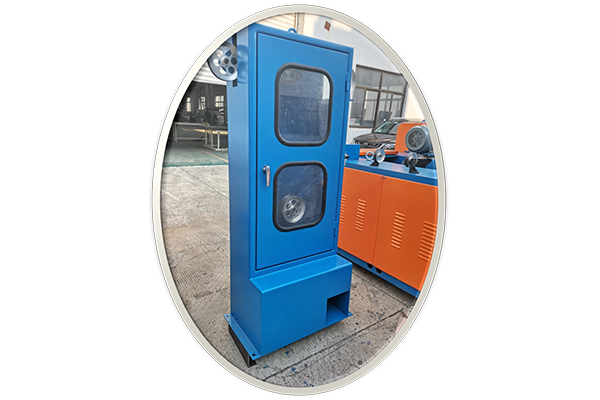

| 4 | Dancer |
 |
1 set |

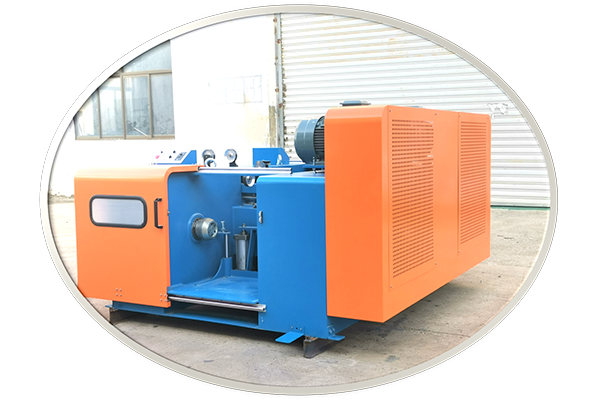

| 5 | Take up machine |
 |
1 set |
