400/13DT RBD machine with annealer for copper ( Economical type)

Usage: Bare copper
Inlet diamter: Max.Ф8mm
Outlet diameter: Ф2.78mm-Ф1.38mm.
Max.number of drawing dies:13
Max. speed: 720mpm
零售价
0.0
市场价
0.0
数量
-
+
库存:
0
1
Details

 Technical Parameter

Inlet diameter Ф8.0mm
Outlet diameter Ф2.78mm-Ф1.38mm
Max. speed 600mpm
Max. number of drawing dies 13pcs
Capstan Tungsten carbide coated
Max.capstan diameter Ф450mm
Main motor power 90KW
Transmission method By gear
Spooler power 11KW
Lubrication method Half-immersing+spray type
Suitable spool Ф400mm/Ф500mm
Main machine dimension 4485mm*1700mm*1350mm
Machine weight 10000kgs



 Main components for your reference

S/N Components Picture Qtty.

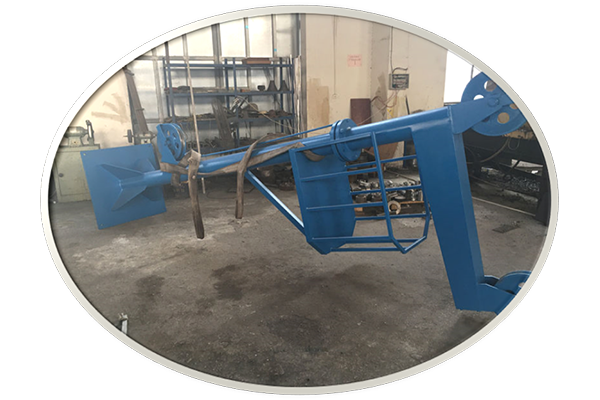

1 Pay off stand 1 set

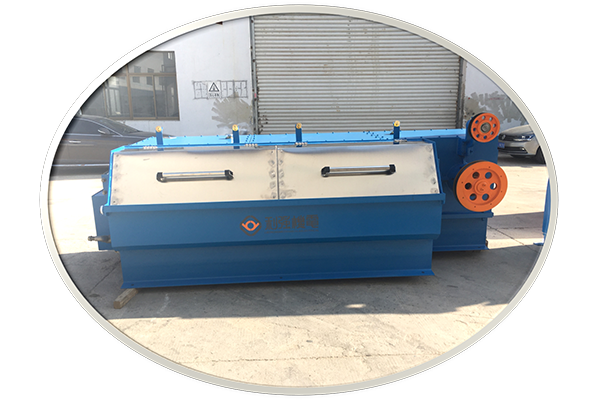

2 Rod breakdown machine 1 set

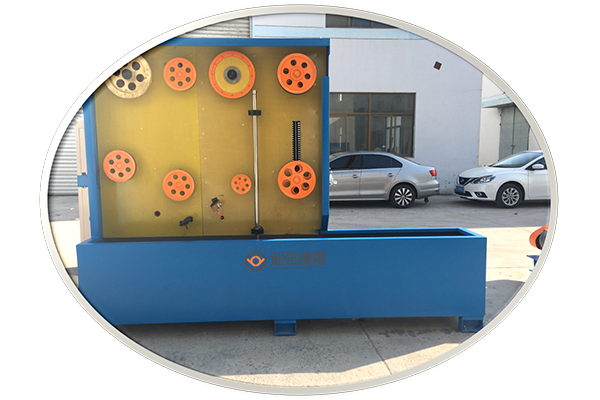

3 Annealing 1 set

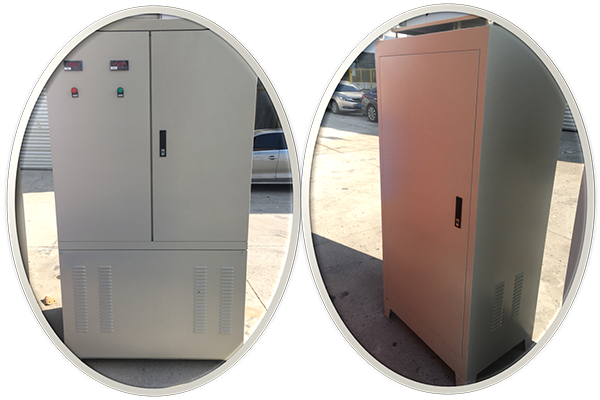

3 Electrical cabinet 2 sets

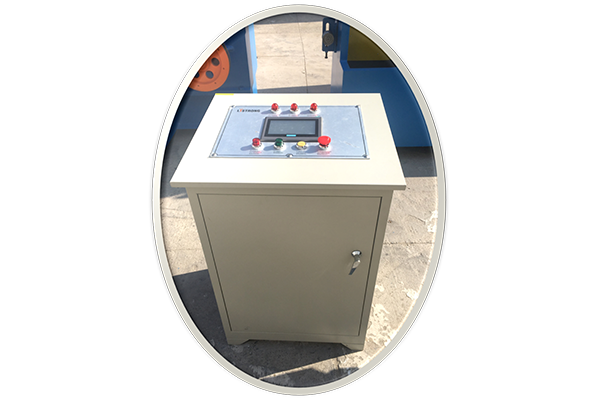

4 Console 1 set

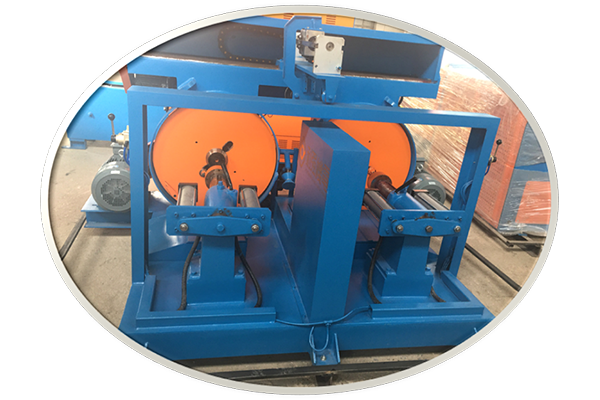

5 Double spooler 1 set
