450/9DT Rod Breakdown Wire drawing machine with online annealing
2) Outlet diameter: Φ2.5mm-Φ3.5mm
3) Max.number of drawing dies: 9
零售价
0.0
元
市场价
0.0
元
数量
-
+
库存:
0
Details
Product introduction
This type of wire drawing machine is suitable for drawing and annealing copper rod.
It has the following features:
1)Iron cast
2)High precision gear transmission, high efficiency,low noise.
3)Fully immersed way to lubricate and cool, which can guarantee the quality of drawing wire.
4)Annealing device is inclined, which is convenient for workers to cross wire.
5)Special designed air pipe to send air to the axis of annealing wheel.
Technical parameter
| Inlet dia. | Φ8mm |
| Outlet dia. | Φ2.5mm-Φ3.5mm |
| Max.speed | 800mpm |
| Max.number of drawing dies | 9 |
| Slip ratio of M/C | 20% |
| Fix speed capstan slip ratio | 17% |
| Capstan | Φ450 |
| Fix speed capstan dia. | Φ450 |
| Frame | Welded |
| Main motor power | 160KW |
| Spooler power | 15KW |
| Dynamic control | Control with DC speed regulator+double frequency converters |
| Tension control | Penumatic balance by swing arm |
| Pay off method | Over head |
| Traversing method | Gear motor |
| Transmission method | By gear |
| Lubrication method | Half-immersing+spray type |
| Suitable spool | Φ800 coiling basket |
| Capacity of take up | 1200-1800 |
| Service voltage | 380V |
| Brake | Pneumatic brake |
Main components for your reference
| S/N | Components | Pictures | Qtty. |

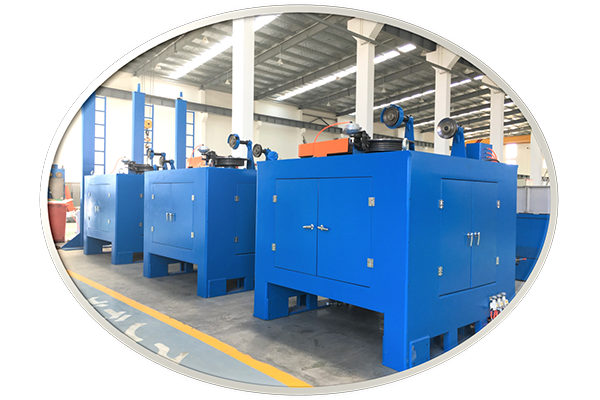

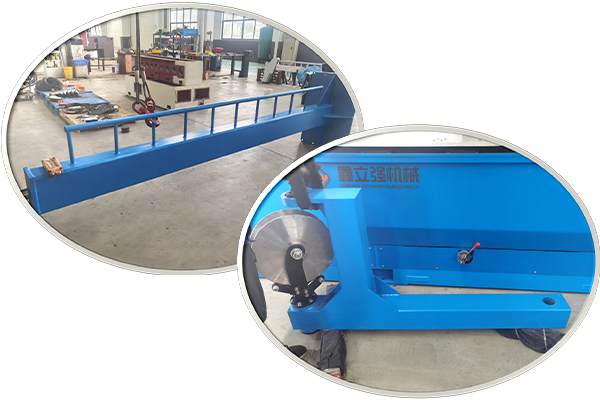

| 1 | Pay off stand |
 |
1 set |

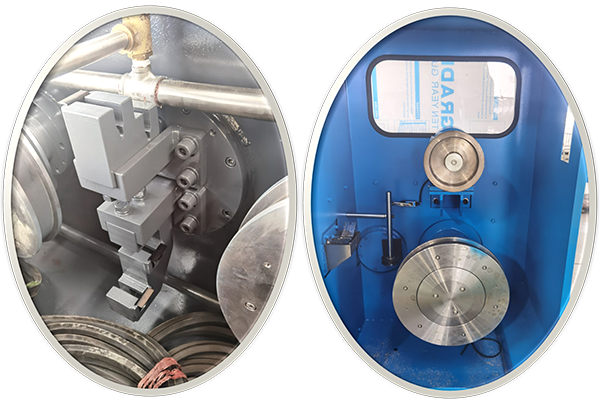

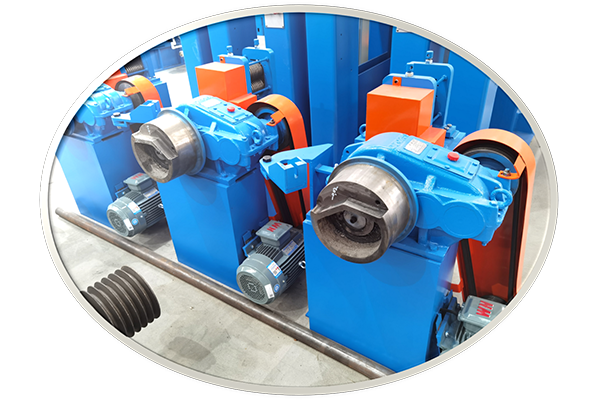

| 2 | Pointing machine |
 |
1 set |
| 3 | Main machine |
 |
1 set |

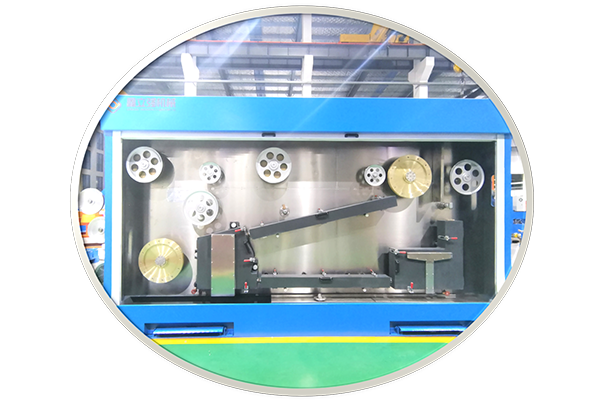

| 4 | Annealing machine |
 |
1 set (Optional) |

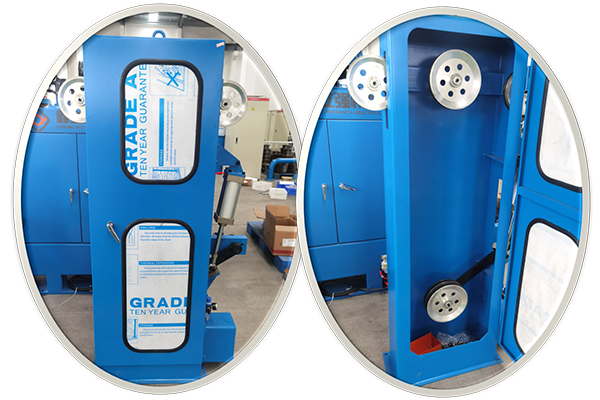

| 5 | Dancer |
 |
1 set |
| 6 | Drop coiler |
 |
1 set |

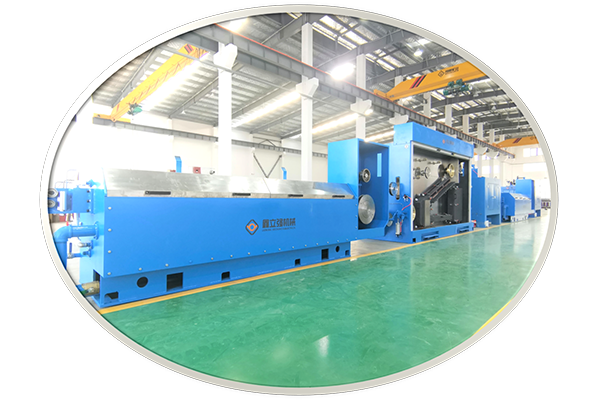

| 7 | Overview |
 |
1 set |
