450-13/2 450/13-2T Double Copper Rod Breakdown Machine with Annealing (Individual Motor Driven Type)
Products
Professional manufacturer in electronic wire,magnetic wire, as well as wire & cable production equipments
Products
Check Category
Contact Details
- Tel : +86-13167029626
- Whatsapp : +86 13167029626
- E-mail : info@chinamachinery.cc
- Plant: Jiangsu Listrong Mechanical & Electrical Co.,Ltd
- Add: North JinfengRoad,Precision Machinery Manufacturing Industrial Park,DongtaiCity,JiangsuProvince,China
Please contact us through the following contact information.
Can't find the product you want? Please do a quick search.
1
/
1
RBD machine with annealer
Inlet: Max.Ф8mm
Outlet:Ф1.6mm-Ф3.5mm
Max.number of drawing dies:13
Max. speed:800mpm
零售价
0.0
元
市场价
0.0
元
数量
-
+
库存:
0
Details
Product introduction

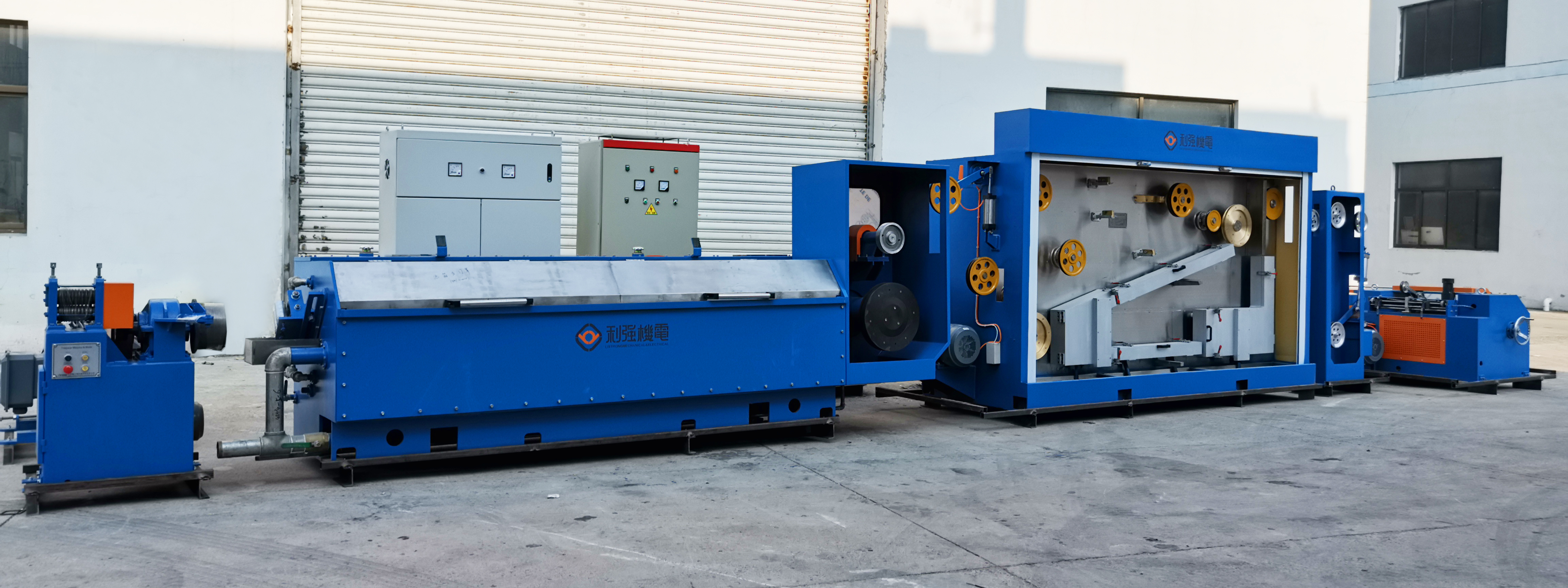

LISTRONG- 13DT Rod Breakdown Machine with Continuous Annealer
Suitable for drawing and annealing bare copper wire from Max.Ф8mm to Ф1.6mm-Ф3.5mm.
Technical parameters
Model: LISTRONG- 13DT Rod Breakdown Machine with Continuous Annealer
|
Serial No. |
Item |
Description |
|
1 |
Inlet dia. |
Max.Ф8mm |
|
2 |
Outlet dia. |
Ф1.6mm-Ф3.5mm. |
|
3 |
Max. drawing times |
13 |
|
4 |
Drawing speed |
800mpm |
|
5 |
Slip ratio of M/C |
20% |
|
6 |
Fix speed capstan slip ratio |
17% |
|
7 |
Capstan |
Tungsten carbide coated |
|
8 |
Main motor power |
200KW |
|
9 |
Spooler power |
15KW |
|
10 |
Dynamic control |
Control with DC speed regulator + double frequency converters |
|
11 |
Tension control |
Pneumatic balance by swing arm |
|
12 |
Pay off method |
Over-head |
|
13 |
Traversing method |
Gear motor |
|
14 |
Transmission method |
By gear |
|
15 |
Lubrication method |
Half immersing + spray type |
|
16 |
Brake |
Pneumatic brake |
FAQ
Q: How you can guarantee your machine quality?
A: We have strict pre-inspection and final inspection regulations, parts are purchased from famous and reliable suppliers only, each machine before dispatching must be tested with raw material to ensure the machine without any problem. Acceptance inspection by the client in our plant before dispatching is also welcome. We provide 12 months warranty period for both mechanical and electrical parts.
Q: What payment term do you accept?
A: Usually two options: T/T and L/C.
T/T: 30% upon confirming order as down payment, 70% before delivery.
L/C: 100% sight L/C.

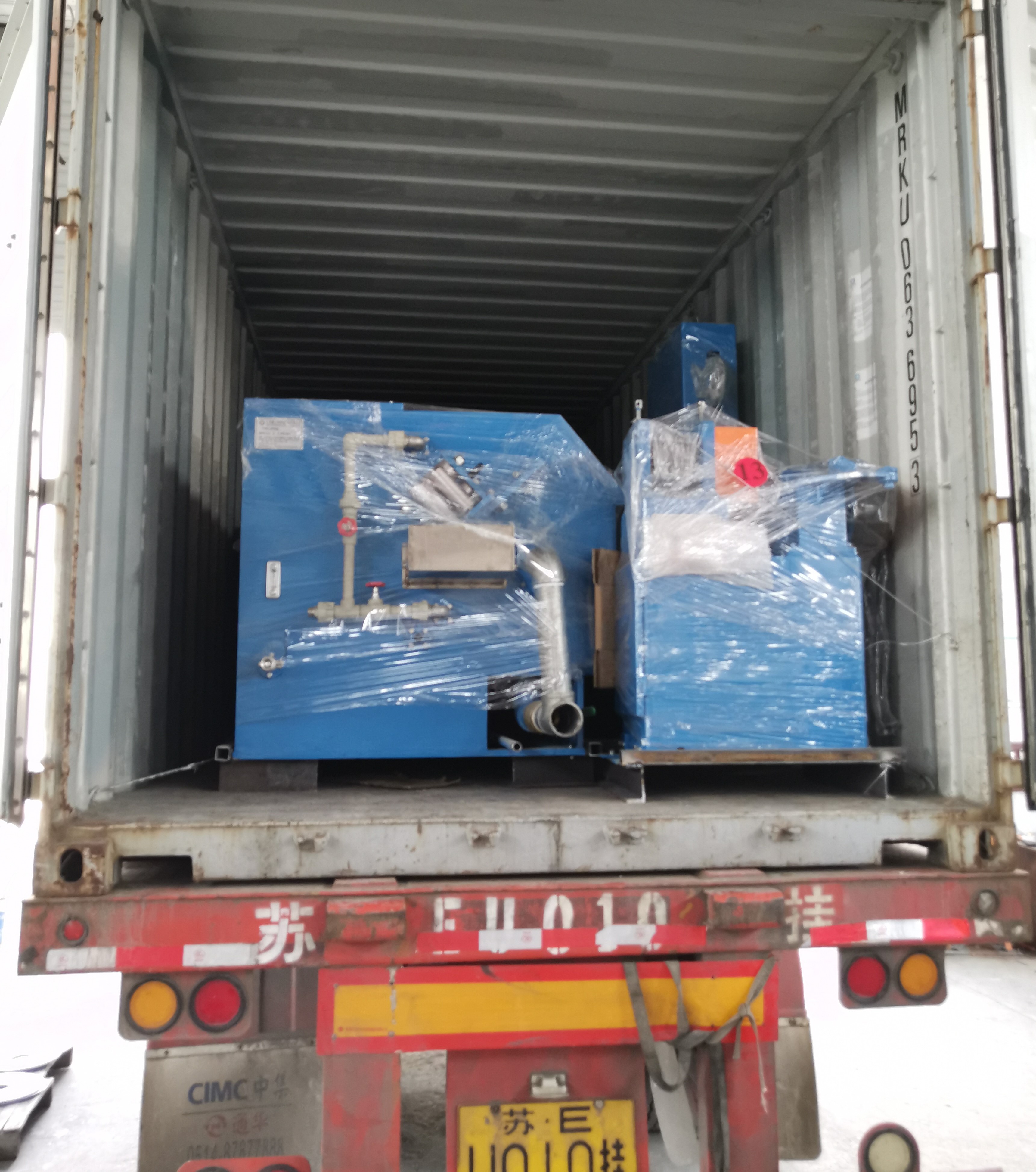

Packing & Delivery
Packaging details: Steel pallet.
Delivery Time: within 90 working days after confirming the order of the wire drawing machine.
