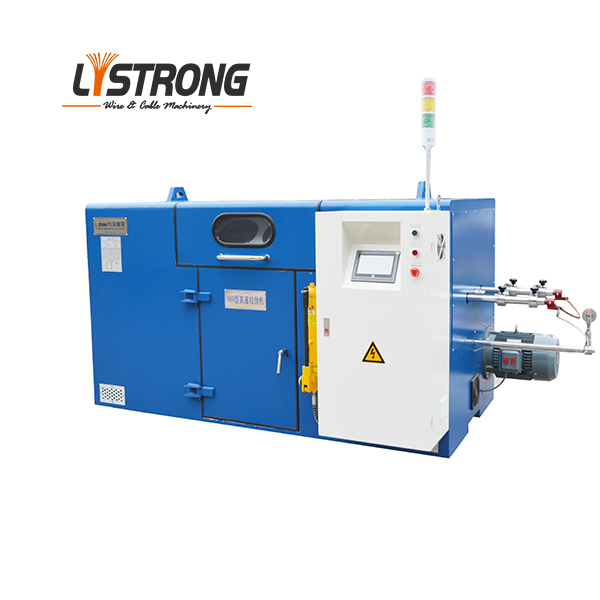

LISTRONG-1250D Double Twist Bunching Machine

1) Max.rotating speed:2000rpm
2) Inlet wire diameter:Φ0.18mm-Φ0.62mm
3) Twisting section:0.18mm2-6mm2
4) Twisting interval:34(11.6mm-66.1mm)

Max.rotating speed:1200rpm
Inlet wire diameter(mm):Φ0.3mm-Φ1.32mm
Twisting section(mm2):2.5-16
Twisting interval(mm):30(29.06mm-157mm)

Inlet wire dia.(mm):Φ0.6mm-Φ5.0mm
Max. twist dia.(mm):Φ15mm
Rotate speed:600rpm

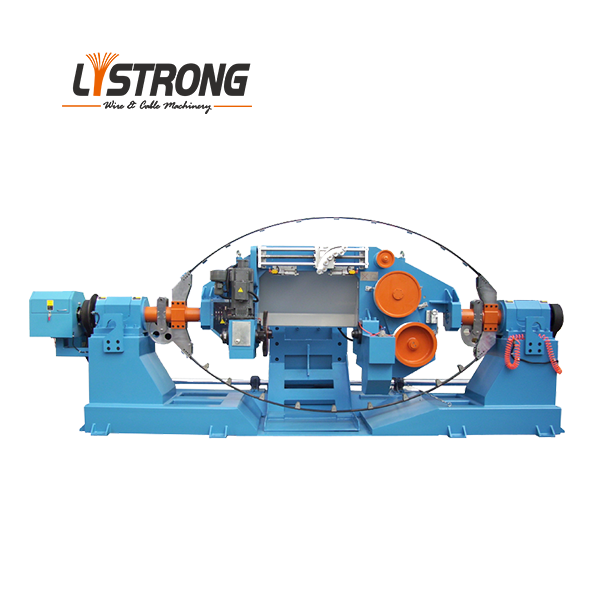

LISTRONG -Φ630-Φ1250 Horizontal High Speed Cantilever Single Twister

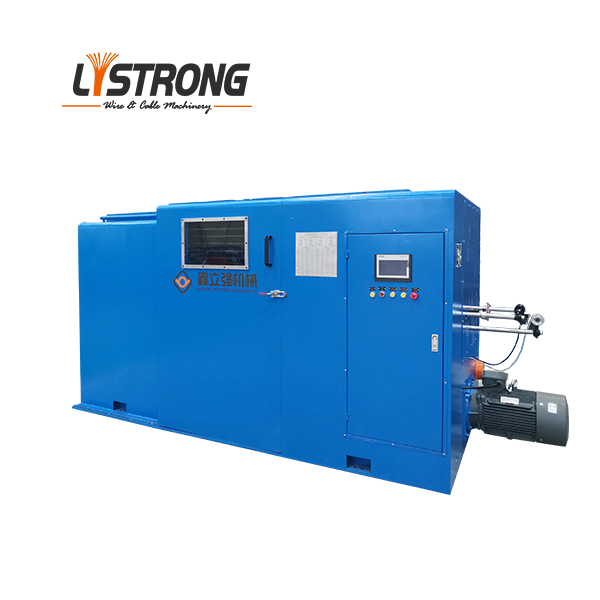

Productintroduction LISTRONG-1000B/1250B/1600BWirerodtwistingmachineThe1000B/1250B/1600BWirerodtwistingmachineisdesignedwithhighproductivity,saveenergy,smallersize,lowernoiseetc. Application:Appliedfortwistingofsevenpcsorabove,suchas1)barecopperwires,2)tinnedwires,3)silverjacketedwires,4)enameledwires,5)doubletwistingforcorewires,canreplacetraditionaltubebunchingmachine.  Technicalparameters Model:LISTRONG-1000B/1250B/1600BWirerodtwistingmachineEquipmentmodels1000B1250B1600BTwistingusageApplyfortwistingofsevenpcsorabove,suchas1)barecopperwires,2)tinnedwires,3)silverjacketedwires,4)enameledwires,5)doubletwistingforcorewires.Singlewiredia(mm)0.30-2.140.5-2.540.5-2.52Strandingsectionarea(mm²)6.0～25.0 10.0～35.0 16.0～95.0 Corewiresinglewiredia(mm)2.0～5.03.0～6.03.0-10Corewirestrandingouterdia(mm)4.0～10.06.0～15.08.0～20.0Pitch(mm)35-200(12classes)50-250(12classes)80-350(12classes)DirectionoflayFreeforrightorleftTakeupbobbinOuterdia*bore*outerwidth1000*80*7501250*80*9501600*80*1180Maxrotatingspeed1000rpm(2000twist)800rpm(1600twist)600rpm(1200twist)Mainmotorpower18.5KW22KW30KWInverterpower18.5KW22KW30KWTensioncontrolTouchscreen+PLC+magneticpowderclutch,ensuretheconstanttensionfromemptytofullbobbinMagneticpowderclutch20kgf20kgf40kgfProtectionautomaticallybrake/stop1)wireinsideandoutsideisbroken2)thepresetlengthisarrivedBrakemodeElectromagneticbrakeTraversingmethodRollingwirewithringdriveunits,windingpitchandbreadthareadjustableOperationmodeTouchscreenoperationDimensionL*W*H(mm)4000*2200*21004500*2600*25005000*3000*3000   FAQQ:Howyoucanguaranteeyourmachinequality?A:Wehavestrictpre-inspectionandfinalinspectionregulations,partsarepurchasedfromfamousandreliablesuppliersonly,eachmachinebeforedispatchingmustbetestedwithrawmaterialtoensurethemachinewithoutanyproblem.Acceptanceinspectionbytheclientinourplantbeforedispatchingisalsowelcome.Weprovide12monthswarrantyperiodforbothmechanicalandelectricalparts. Packing&DeliveryPackagingdetails:Steelpallet.DeliveryTime:within60workingdaysafterconfirmingtheorderofthewiredrawingmachine.

Max.rotating speed:2000rpm
Inlet wire diameter(mm):Φ0.18mm-Φ0.62mm
Twisting section(mm2):0.18-6
Twisting interval(mm):34(11.6mm-66.1mm)
