Copper fine wire drawing machine with annealer
Inlet dia.: Max. 4 * Ф1.6mm
Outlet dia.: 4 * Ф0.15mm-Ф0.5mm
Production introduction
LISTRONG-20/4DT Four-wire Fine Wire Drawing Machine with Annealer
The wire drawing machine is used for drawing and annealing copper wire at the same time.
It has the following features:
1) High efficiency,saving energy,space and labor force.
2) Dual inverters and motors control for take up,drawing stale.
3) Tension independent control,wire is not easily gets break.
4) Two options available for take up,output wire can be spooled on the same bobbin or four bobbins separately.
Technical Parameter
Inlet dia. | 4*Max.Φ1.6mm |
Outlet dia. | 4*Φ0.15mm-Φ0.5mm |
Max.speed | 1500mpm |
Max.number of draiwng dies | 20 |
Slip ratio of M/C | 15% |
Fix speed capstan slip ratio | 8% |
Main machine power | 37KW |
Annealing power | 1200A 70V (84KVA) |
Take up power | 3.7KW*4 |
Correction system | Automatically control |
Annealing method | DC three section annealing |
Suitable spool | Φ300 or according to customer requiremnt |
Take up capacity | 50KG*4 |
Brake | Electromagnetic brake |
Machine dimension | 8000L*1600W*2100H(mm) |
Machine weight | 4000KGS |
Picture for your reference

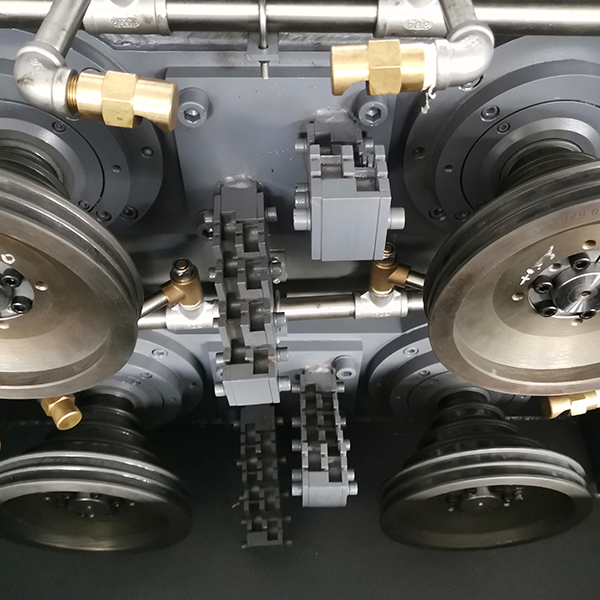

1)Main machine part

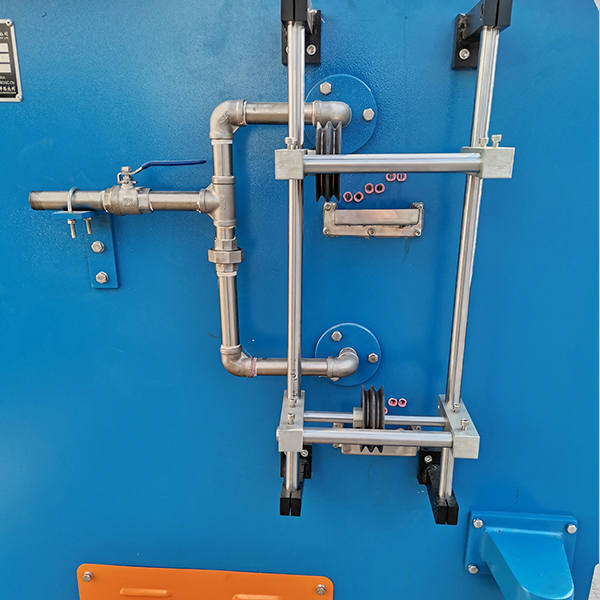

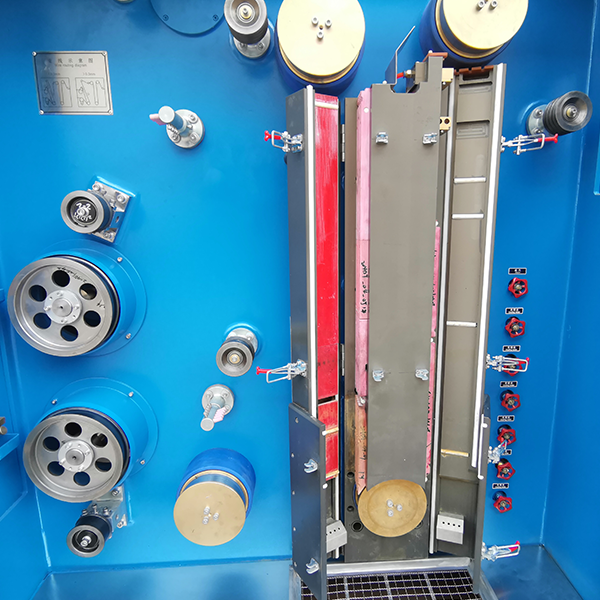

2)Annealing part

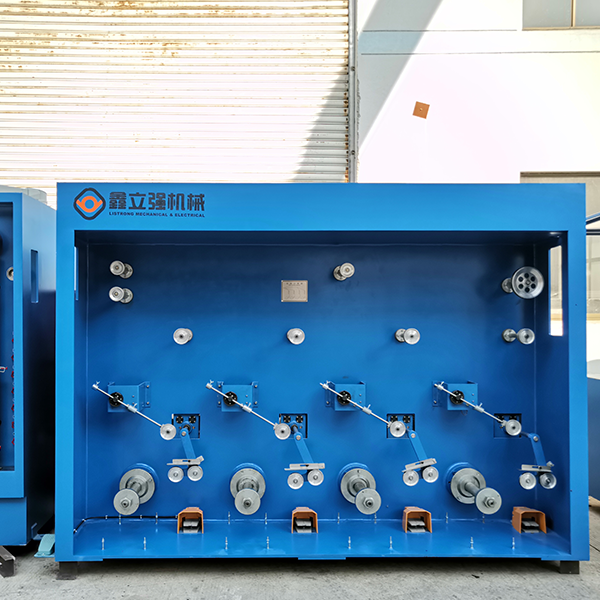

3)Take up part(four bobbin)

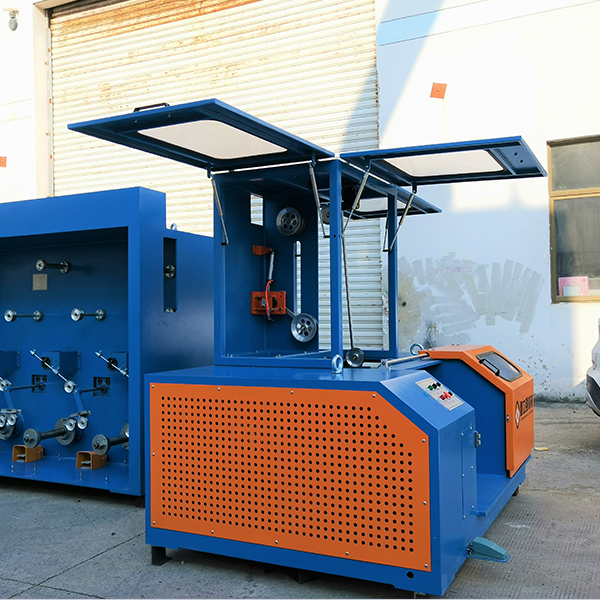

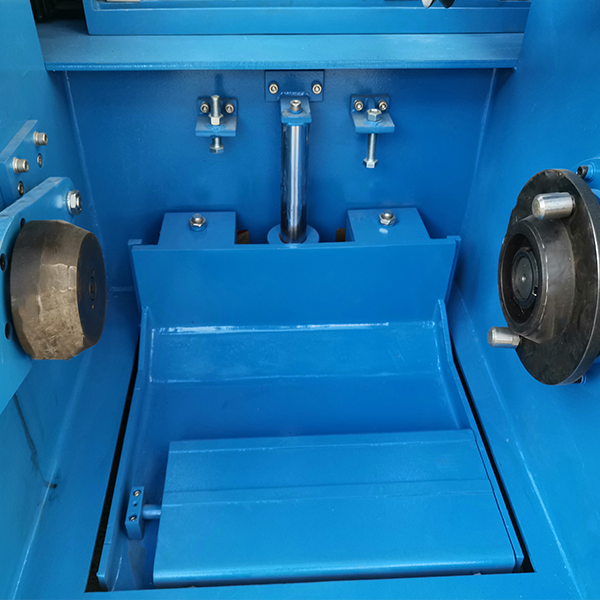

4)Take up part(Single bobbin)

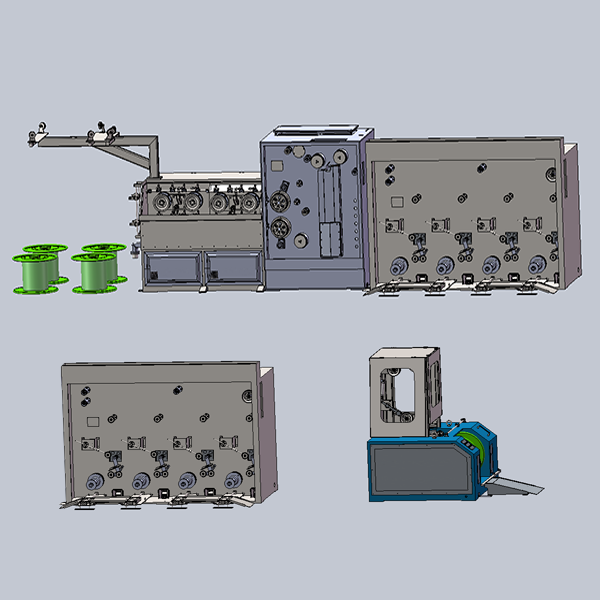

5)Three-dimensional appearance drawing
