LHD400-7D RBD wire drawing machine
2) Outlet diameter : Φ2.6mm-Φ3.0m
3) Max.number of drawing dies:7
零售价
0.0
元
市场价
0.0
元
数量
-
+
库存:
0
Details
Product Introduction
1) The main gear box body is a one-piece casting, high-precision hard-tooth surface helical gear transmission (the tooth surface is formed by a German grinding machine), the cable fuel tank cover is sealed with a double-layer cover, and the equipment is beautiful in appearance. Advanced structure, low operating noise, high production efficiency and high economic benefits;
2)The drawing capstan is sprayed with tungsten carbide treatment, which has good wear resistance and long life; the drawing part is semi-immersed cooling, the drawing die and copper wire can be optimally cooled and lubricated, which can effectively extend the use of the drawing die and capstan life;
3)There is a space between the capstan box and the gear box. In order to prevent the drawing fluid and the gear box oil from interpenetrating and mixing, multiple seals are adopted in the design and assembly to prevent penetration;
4)The equipment adopts plum-blossom take-up machine to take up the wire, which has the function of frame changing without stopping, and has good production continuity;
5)The whole machine adopts PLC coordinated control, frequency conversion speed control, synchronously adjustable speed, and automatic shutdown functions such as disconnection and failure.
2)The drawing capstan is sprayed with tungsten carbide treatment, which has good wear resistance and long life; the drawing part is semi-immersed cooling, the drawing die and copper wire can be optimally cooled and lubricated, which can effectively extend the use of the drawing die and capstan life;
3)There is a space between the capstan box and the gear box. In order to prevent the drawing fluid and the gear box oil from interpenetrating and mixing, multiple seals are adopted in the design and assembly to prevent penetration;
4)The equipment adopts plum-blossom take-up machine to take up the wire, which has the function of frame changing without stopping, and has good production continuity;
5)The whole machine adopts PLC coordinated control, frequency conversion speed control, synchronously adjustable speed, and automatic shutdown functions such as disconnection and failure.
Technical parameters
Inlet diameter | Max.Φ8mm |
Outlet diameter | Φ2.6mm-Φ3.0m |
Capstan diameter | Φ400mm |
Max.number of drawing dies | 7 |
Speed ratio of capstan | 1.38-1.20 |
Max.drawing speed | 15m/s |
Main power | 160KW(AC) |
Outer diameter of pay-off copper rod circle
|
2000mm |
Take up power | 18.5KW(AC) |
Capacity | 160KW |
Components of RBD machine
S/N | Component | Picture | Remark |

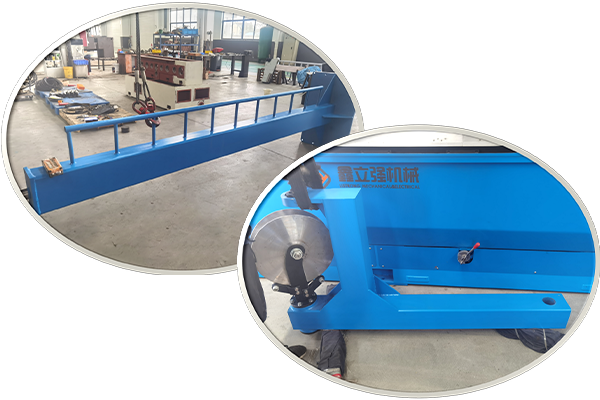

1 | Pay off stand |
![]() |
1 set |

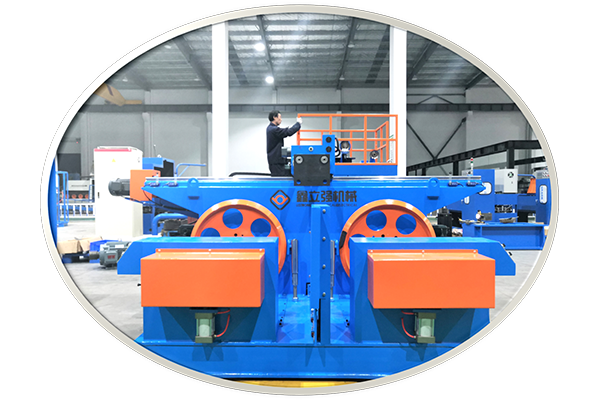

2 | Pointing and threading machine |
![]() |
1 set |

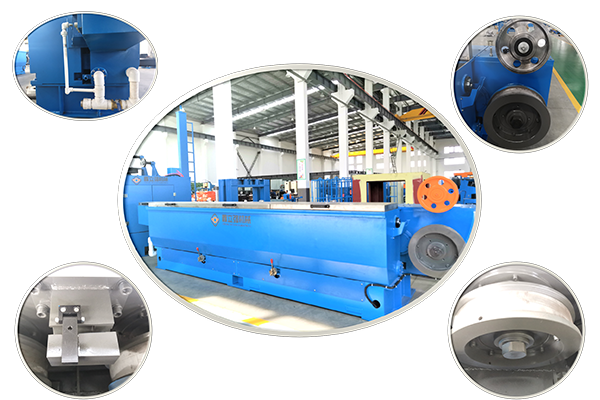

3 | Main machine |
![]() |
1 set |

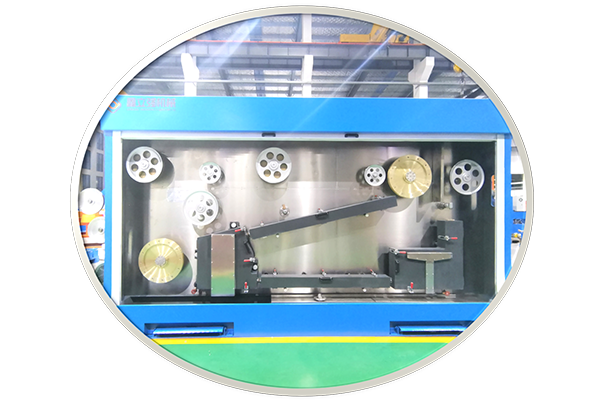

4 | Annealing machine |
![]() |
1 set(Optional) |

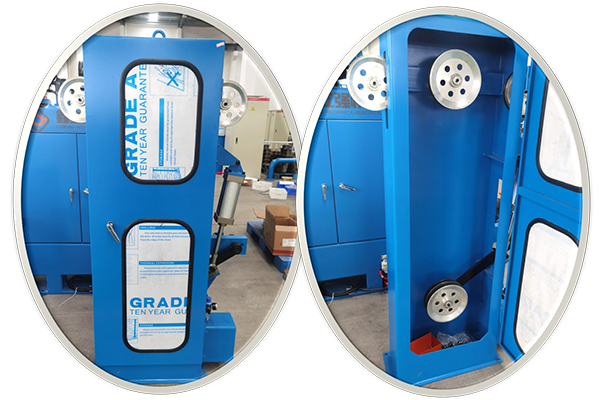

5 | Dancer |
![]() |
1 set |

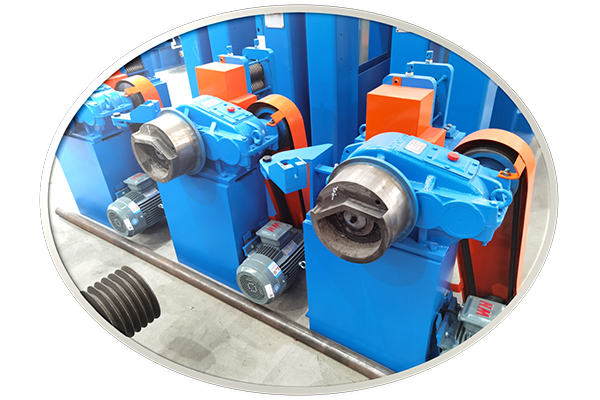

6 | Drop Coiler |
![]() |
1 set (Optional) |

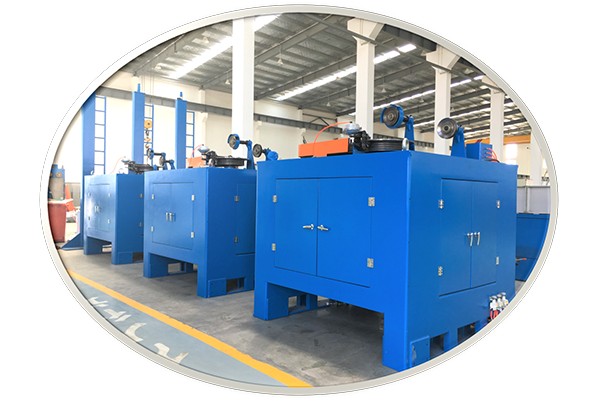

7 | Double spooler |
![]() |
1 set (Optional) |
