Multi medium wire drawing machine
2) Inlet dia.:Φ2.50mm-Φ3.50mm
3) Outlet dia.:Φ0.40-Φ1.20mm
零售价
0.0
元
市场价
0.0
元
数量
-
+
库存:
0
Details
Production introduction
LISTRONG-17/2DS Multi medium wire drawing machine
The medium wire drawing machine is used for drawing two copper wires at the same time.
It has the following features:
1）High speed, energy saving, space saving and manpower saving.
2）Two-wire drawing design can save 20-30% power consumption comparing it of two traditional single-wire drawing machines.
3）Full immersing lubrication ensures the best wire cooling effect, prolong the service life of the cones and drawing dies.
4）Spooler and drop coiler are optional for this machine.
Technical parameters
| Inlet dia. | 4*Φ2.5mm-Φ3.5mm |
| Outlet dia. | 4*Φ0.4mm-Φ1.2mm |
| Max.speed | 1800mpm |
| Max.number of drawing dies | 17 |
| Slip ratio of M/C | 20% |
| Fix speed capstan slip ratio | 15% |
| Capstan | Tungsten coated |
| Max.capstan diameter(mm) | Φ280 |
| Frame | Welded |
| Main machine power | 90KW AC |
| Take up power | 11KW*2 |
| Correction system | Automatically control |
| Dynamic control | Double frequency converters control |
| Transmission method | By gear |
| Pay off method | Over head |
| Tension control | Weight balance by swing arm |
| Lubrication system of drawing | Immersing type |
| Suitable spool | Φ630mm/Max. |
| Take up capacity | 1200-1800 |
| Brake | Pneumatic brake |
Pictures for your reference

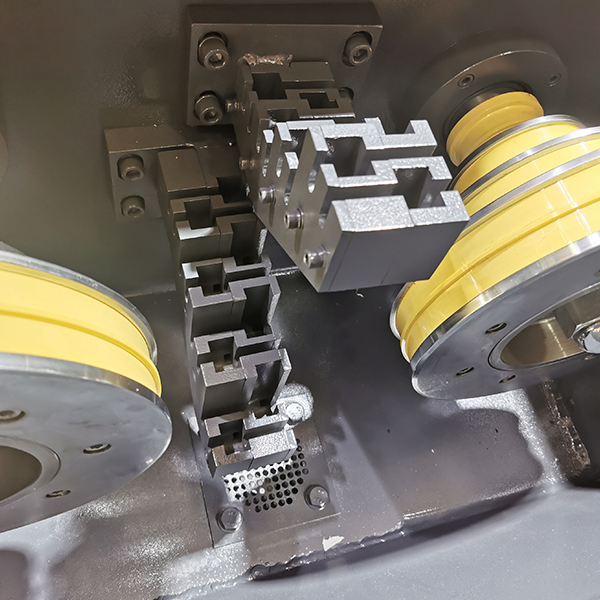

1)Main machine part

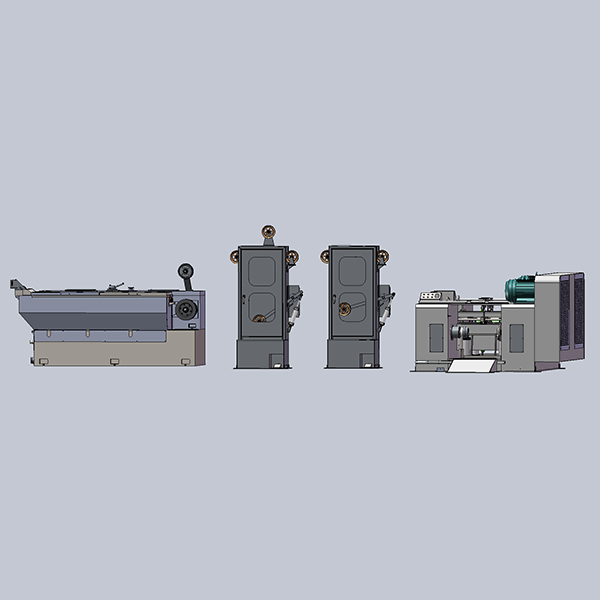

2)Three-dimensional appearance drawing
Configuration
| S/N | Name | Bramd |
| 1 | Main drive | INOVANCE,made in Shenzhen |
| 2 | Take up drive | INOVANCE,made in Shenzhen |
| 3 | PLC | SIEMENS |
| 4 | HMI | SIEMENS |
| 5 | Main motor | WANNAN,Made in Anhui |
| 6 | Take up motor | WANNAN,Made in Anhui |
| 7 | Contactor | LS |
| 8 | Control switch | LS |
| 9 | Button | Tend,Made in Taiwan |
| 10 | Low voltage components | Schneider |
| 11 | Sensor | Autonics |
| 12 | Relay | schneider |
