25/4DT Fine wire drawing machine with continuous annealing

1) Usage: Copper wire
2) Inlet dia.: 4×Φ1.50mm ~ Φ2.00mm
3) Outlet dia.: 4×Φ0.15mm ~ Φ0.50mm
4)Max. number of drawing dies:25pcs*4
零售价
0.0
市场价
0.0
数量
-
+
库存:
0
1
Details

 Product introduction



1)Driven by high precise helical gears; particular oil lubrication mechanism; dual motors drive.
2)The capstan and die lubrication system is in emulsion spraying with force from inside of die holders design; In this way, the lubrication is more sufficient and it save space, moreover, it makes operation more convenient.
3)Annealing contact copper rings, nickel tubes are made from special alloy; it can ensure a longer service life.
4)The annealer control system is in zero length preset voltage design, so that it can ensure stable annealing of wires in the process of machine start and stop.



 Technical Parameter



Inlet dia. 4*Φ1.5mm-Φ2.0mm
Outlet dia. 4*Φ0.15mm-Φ0.5mm
Max.speed 1800mpm
Max.number of drawing dies 25
Slip ratio of M/C 16%
Fix speed capstan slip ratio 8%
Main machine power 55KW+18.5KW
Annealing power 1200A 70V(84KVA)
Take up power 11KW
Correction system Automatically control
Annealing method DC three-section annealing
Suitable spool Φ630mm/Max.
Take up capacity 500KG
Brake Pneumatic brake
Machine dimension 5000L*1600W*2100H(mm)

Machine weight

4000KGS



 Details

S/N Components Picture

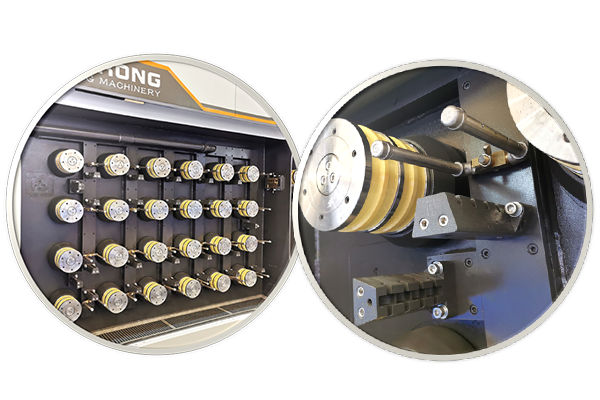

1 Main machine part

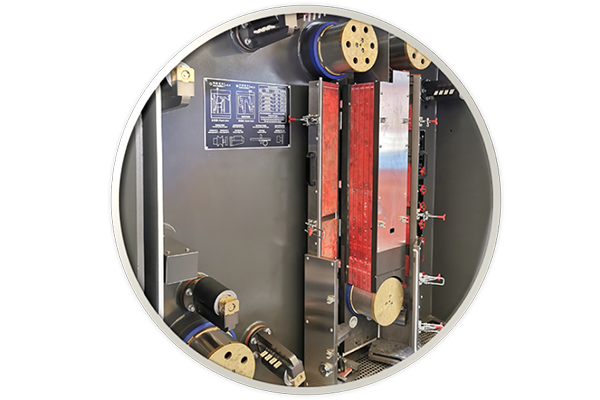

2 Annealing part

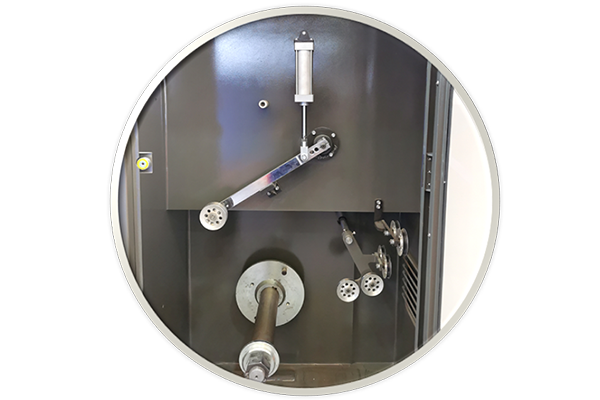

3 Spooler

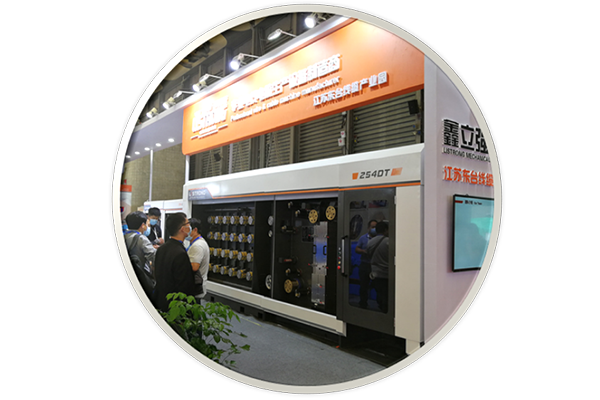

4 Overview
