LHD450/13DT Rod Breakdown Machine for copper

Usage:Copper rod breakdown
Inlet diameter: Max.Φ8mm
Outlet diameter: Φ1.2mm-Φ4.5mm
Max. number of drawing dies: 13pcs
零售价
0.0
市场价
0.0
数量
-
+
库存:
0
1
Details

 Product Introduction



Horizontal serial structure. Dual motor drive. Quick die change can be achieved.

High-precision grinding helical gear transmission. High efficiency, low noise.

Drawing capstan combined design.

Fully immersed lubrication cooling to ensure the quality of the wire.



 Technical Parameter



Inlet diameter Max.Φ8mm
Outlet diameter Φ1.2mm-Φ4.5mm
Max drawing speed 25m/s
Diameter of drawing capstan Φ450mm
Max. drawing dies 13 Nos
Max.length of wire accumulator 7m
Size of take up spool PND500,PND630
Coiling mechanism Φ800mm or Φ650mm
Speed ratio between capstana 1.278(2-11 dies),1.25(12 dies), adjustable with 13 dies
Motor for drawing machine 280KW
Mortor for final capstan 75KW
Motor for double spooler 30KW*2
Motor for coiler 22KW
Max. size of drawing dies Φ53*35,It also can be made according to user's requirement
Installation power 510KW



 Main Components of Machine



S/N Components Picture Qtty.

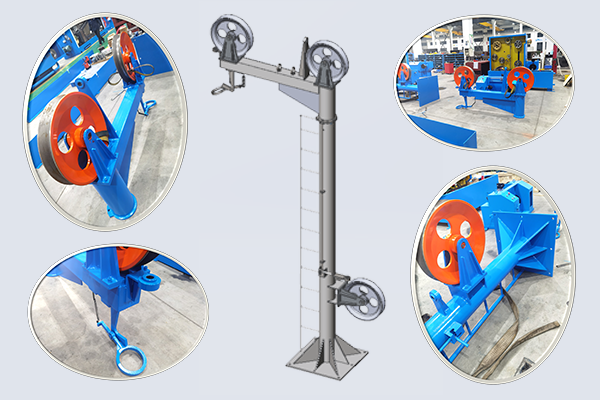

1 Cantilever pay-off stand 1 set

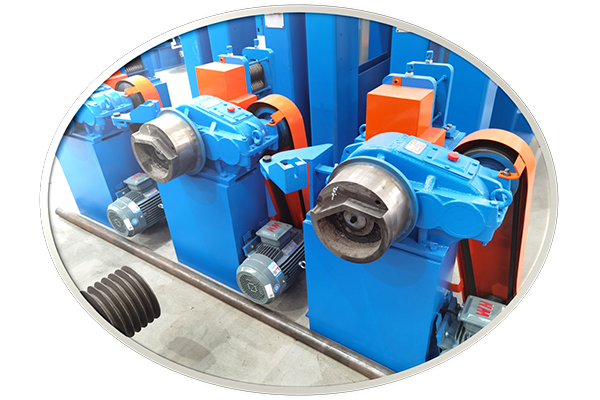

2 Pointing and Threading Unit 1 set

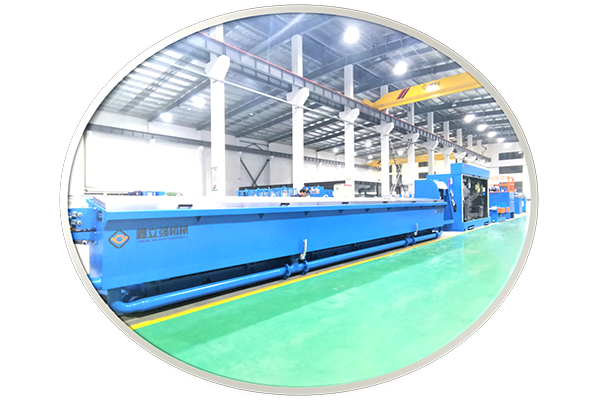

3 13D Main drawing machine 1 set
4 Annealing machine 1 set (Can be selected according to customer requirements )

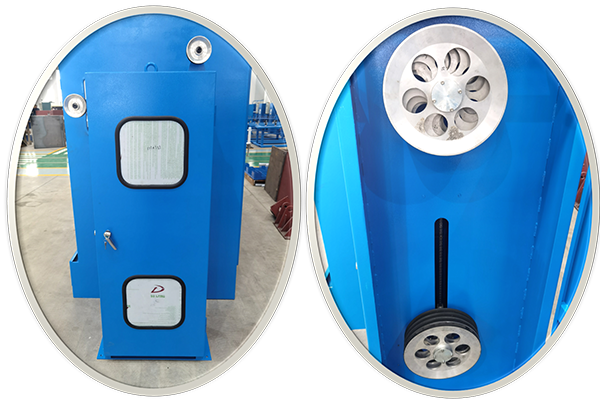

5 Accumulator 1 set

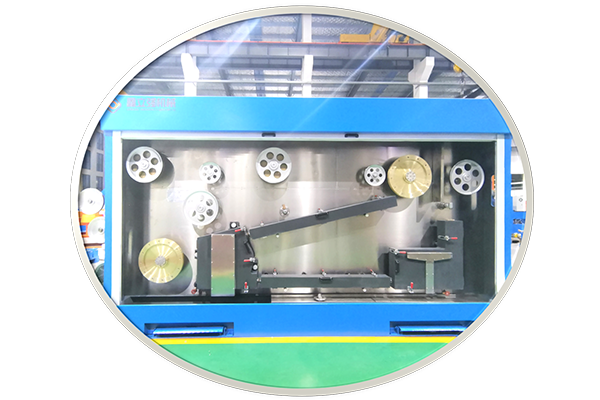

6 Double spooler 1 set (Can be selected according to customer requirements )

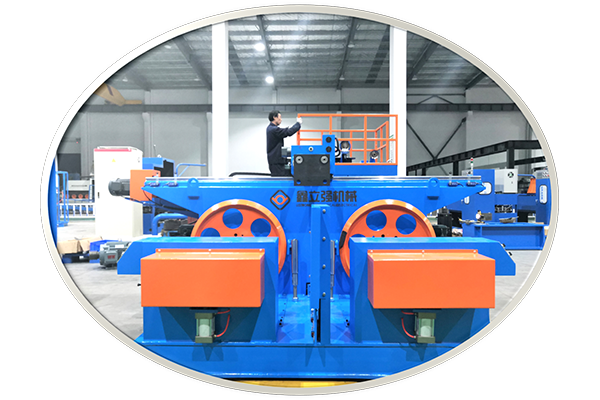

7 Drop Coiler 1 set (Can be selected according to customer requirements )
