Rod breakdown wire drawing machine with annealer
Inlet: Max. φ8mm
Oulet: φ1.2mm~4.5mm
Max.number of drawing dies:13
Max.speed: 1500mpm
Product introduction
LISTRONG-LHD450/13DT Rod Breakdown Machine with Continuous Annealer

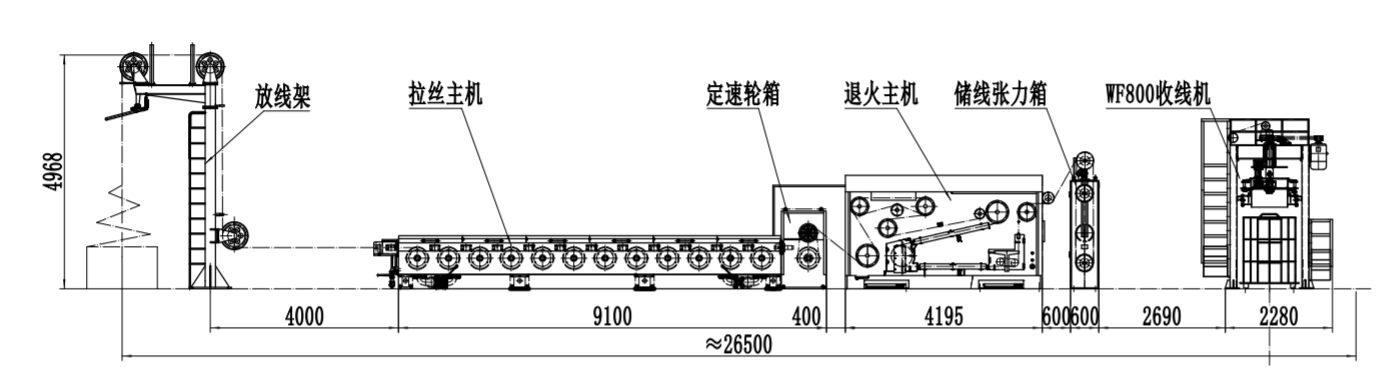

This wire drawing machine is absorbed the international advanced level of high-speed copper wire drawing machine technology. The machine is composed of a pay-off stand, main wire drawing machine, horizontal annealer, storage line tension dancer, double spool take-up machine, lubrication and cooling system.
Application:Suitable to the wire and cable industry to draw φ8mm copper rod into φ1.2~4.5mm.
Technical parameters
Model: LISTRONG-24/2DW Two-wire Fine Wire Drawing Machine
Serial No. |
Item |
Description |
1 |
Inlet dia. |
Max.Ф8mm |
2 |
Outlet dia. |
Ф1.2mm-Ф4.5mm. |
3 |
Max. drawing times |
13 |
4 |
Drawing speed |
1500mpm |
5 |
Rapid die-change system |
No need to change all dies in working out but the final one,which saves a lot of time |
6 |
Control system |
Control with HMI,digital control for motor is available for computer operation |
7 |
Motor control |
DC motor digital control |
8 |
Transmission method |
By precision ground helical gears |
9 |
Drawing lubrication |
Immersing type |
10 |
Bearing lubrication |
By enforced oil pump |
FAQ
Q: What’s the features of the LISTRONG-LHD450/13DT?
A:As we set final die’s size through the PLC,the dies will be fully automatically showed on the monitor.
The driving motors of drawing & final capstan will synchronously controlled to gain 2% below drawing slip ratio.
The rapid dies change system doesn’t need not change all the dies in working but the final one,which saves a lot of time.
Control system:
All alarms and parameters can be controlled and displayed on a fluorescent LCD graphics screen.
Digital control for motor are available for computer operation.
Machine faults of electrical & mechanical can be shown on monitor for easier maintenance.
Transmission gears and bearings are enforced lubricant.
Ring type drawing capstans convenient for maintenance and replacement.
Packing & Delivery
Packaging details: Steel pallet.
Delivery Time: within 90 working days after confirming the order of the wire drawing machine.
