LHD400/11D RBD machine for copper wire
2) Outlet diameter:Φ1.7mm-Φ3.0mm
3) Max. number of drawing dies: 11
零售价
0.0
元
市场价
0.0
元
数量
-
+
库存:
0
Details
Product Introduction
As we set final die's size through the PLC,the dies will be fully automatically showed on the monitor.
The driving motors of drawing and final capstan will synchronously controlled to gain 2% below drawing slip ratio.
The rapid dies change system does not need to change all the dies in working but te final one,which saves a lot of time.
Technical parameters
Inlet diameter | Max.Φ8mm |
Outlet diameter | Φ1.7mm-Φ3.0mm |
Capstan diameter | Φ400mm |
Max.number of drawing dies | 11 |
Speed ratio of capstan | 1.30-1.20 |
Max.drawing speed | 15m/s |
Main power | 160KW(AC) |
Outer diameter of pay-off copper rod circle | 2000mm |
Take up power | 15KW(AC) |
Fix speed capstan power | 30KW |
Main Components of RBD machine
S/N | Components | Pictures | Qtty. |

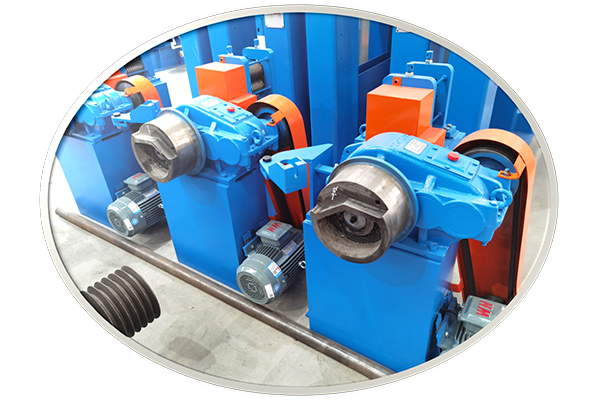

1 | Pay off stand |
![]() |
1 set |

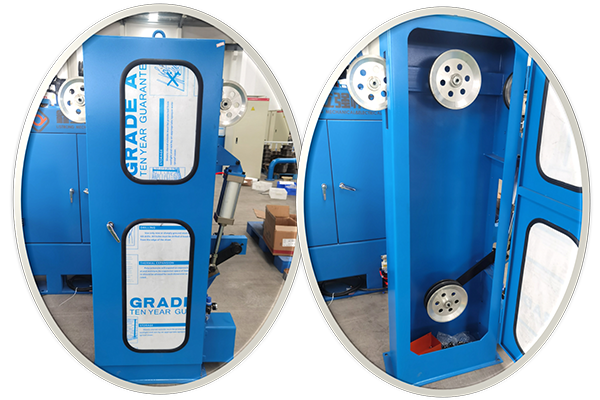

2 | Pointing and Threading Unit |
![]() |
1 set |

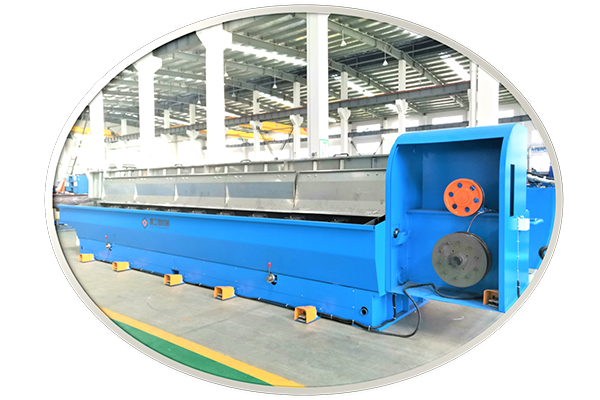

3 | Main machine |
![]() |
1set |

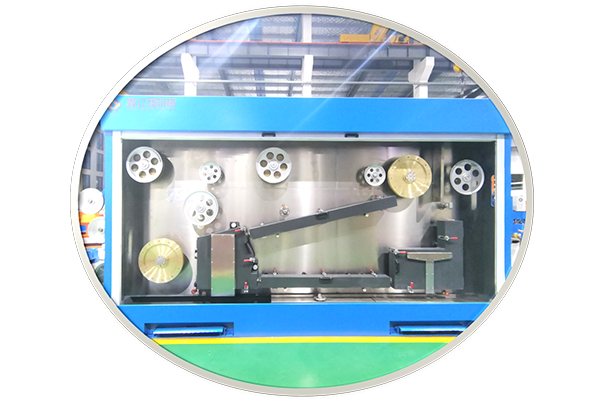

4 | Annealing Machine |
![]() |
1 set (Optional) |

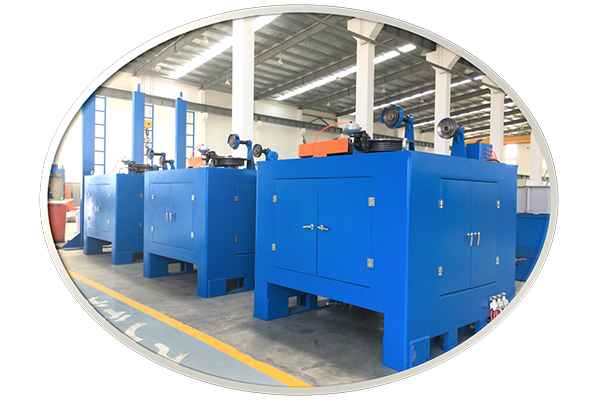

5 | Dancer |
![]() |
1 set |

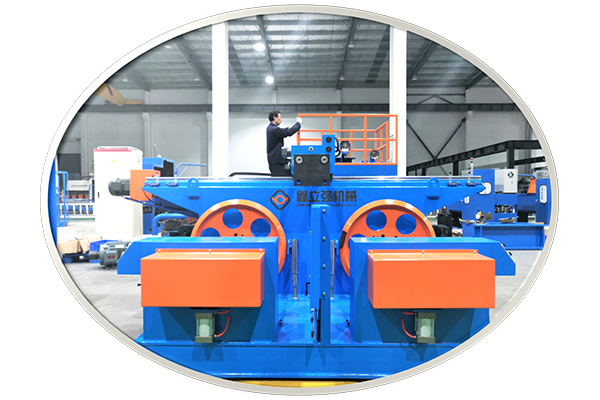

6 | Double spooler |
![]() |
1 set (Optional) |

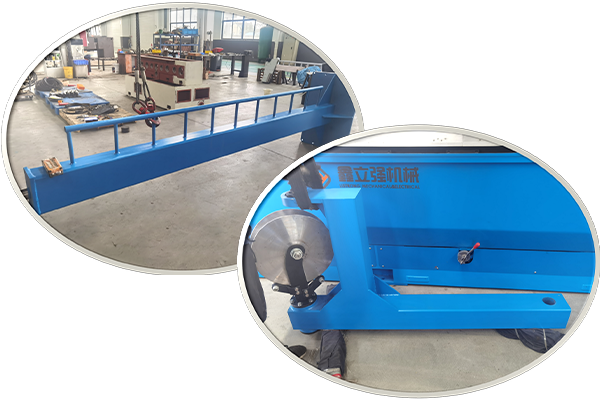

7 | Drop coiler |
![]() |
1 set (Optional) |

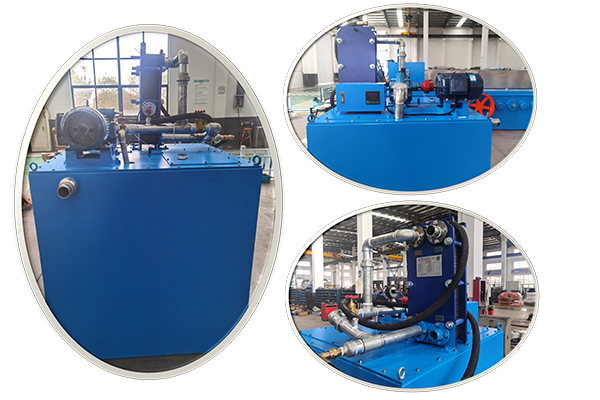

8 | Lubrication system |
![]() |
1 set |
