14DT Fine wire drawing machine with continuous annealing
2) Outlet diameter:Φ0.25mm-Φ0.6mm
3) Max. number of drawing dies:14pcs
零售价
0.0
元
市场价
0.0
元
数量
-
+
库存:
0
Details
Production Introduation
This wire drawing machine is suitable for drawing and annealing copper wire at the same time.
It has the following features:
1）Automatic tension control by dual-inverter.
2）Zero-slip pilot design,high productivity;good quality finished wire.
3）Low energy consumption,a reduction of 20%-25% compared with the traditional type of machine.
4）Widely use imported advanced parts and components to ensure high reliability.
Technical parameters
| Inlet diameter | Φ0.8mm-Φ1.6mm |
| Outlet diameter | Φ0.25mm-Φ0.6mm |
| Max.speed | 1200mpm |
| Main machine power | 15KW |
| Annealing power | 36KVA |
| Take-up power | 3.7KW |
| Annealing method | DC-three section annealing |
| Suitable spool | Φ300mm |
| Correction system | Automatically control |
| Take-up capacity | 50KGS-60KGS |
| Dynamic control | Double frequency inverters control |
| Brake | Electromagnetic brake |
| Machine dimension | 2600L*1600W*1700H(MM) |
| Machine weight | 3000KGS |
Details for your reference
| S/N | Components | Pictures |

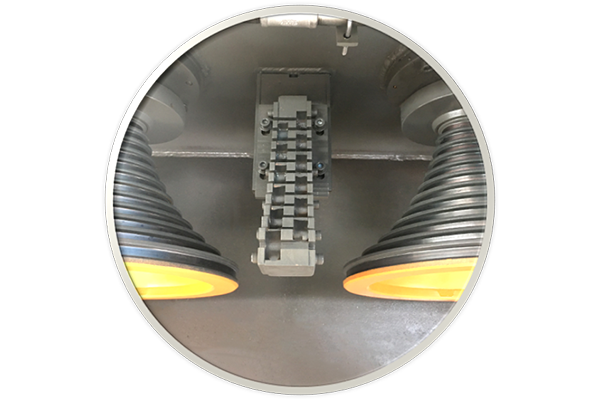

| 1 | Drawing part |
 |

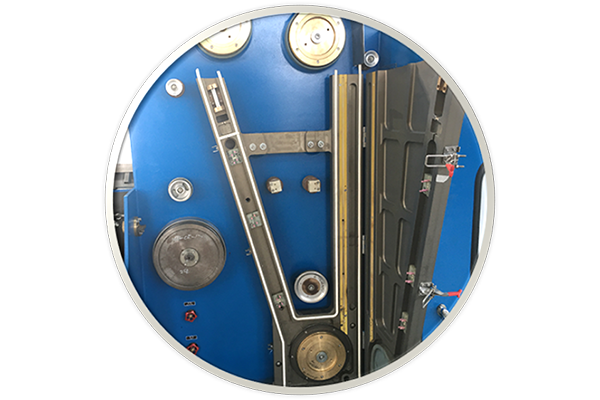

| 2 | Annealing part |
 |

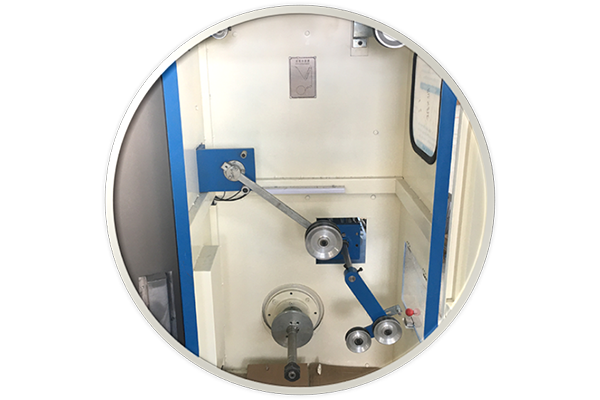

| 3 | Take up part |
 |

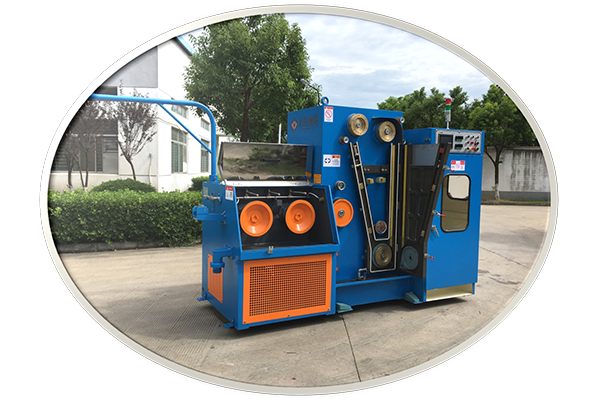

| 4 | Overview |
 |
