Fine wire drawing machine with annealer
Inlet : Ф1.0mm-Ф1.78mm
Outlet: Ф0.25mm-Ф0.6mm
Max. speed:2000mpm
Product introduction
LISTRONG-22DTA/24DTA Fine copper wire drawing machine
Fine copper wire is mostly widely used for electronic wire, building wire, and enameled wire in the market nowadays. There are two types of fine wire drawing machine, one is without annealing machine/ annealer and another is with annealing machine/annealer.
LISTRONG-22DTA/24DTA Fine copper wire drawing machine is equipped with a continuous annealing.
Product introduction
LISTRONG-22DTA/24DTA Fine copper wire drawing machine
Fine copper wire is mostly widely used for electronic wire, building wire, and enameled wire in the market nowadays. There are two types of fine wire drawing machine, one is without annealing machine/ annealer and another is with annealing machine/annealer. LISTRONG-22DTA/24DTA Fine copper wire drawing machine is equipped with a continuous annealing.
Technical parameters
Model: LISTRONG-22DTA/24DTA Fine copper wire drawing machine
Serial No. |
Item |
22DTA |
24DTA |
1 |
Inlet diameter(MM) |
Φ1.0-Φ1.78 |
Φ0.8-Φ2.0 |
2 |
Outlet diameter (MM) |
Ф0.25-Ф0.6 |
Φ0.6-Φ0.20 |
3 |
Max. speed(MPM) |
2000 |
2000 |
4 |
Max. number of drawing dies |
22 |
24 |
5 |
Main machine power |
18.5KW |
22KW |
6 |
Annealing power |
36KVA |
16KVA |
7 |
Take-up power |
3.7KW |
3.7KW |
8 |
Correction system |
Automatically control |
|
9 |
Annealing method |
DC three-section annealing |
|
10 |
Take-up bobbin size(MM) |
Φ300 |
Φ300 |
11 |
Take-up capacity(KG) |
50-60 |
50-60 |
12 |
Brake |
Electromagnetic brake |
|
13 |
Machine dimension(MM) |
3300*1600*1800 |
3300*1600*1800 |
14 |
Machine weight(KG) |
3500 |
3500 |
FAQ
Q: What’s the LISTRONG-22DTA/24DTA Fine copper wire drawing machine composed of?

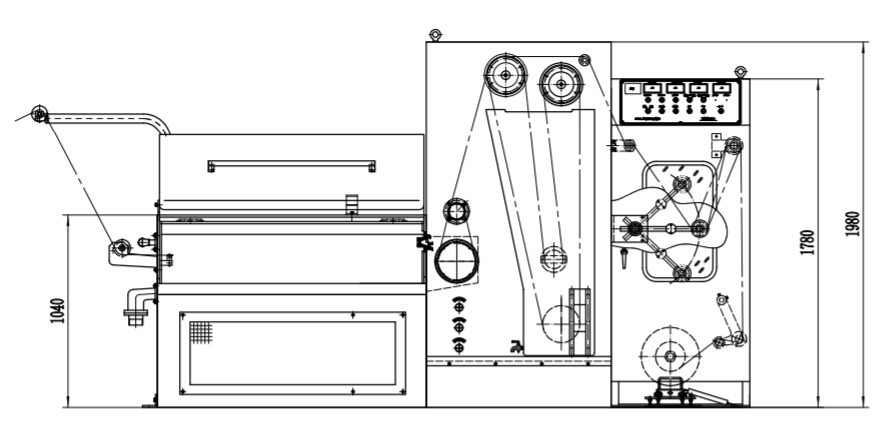

A: This series of machines are equipped with continuous annealing machine / annealer, generally composed of payoff stand, main machine, annealing control panel, steam generator, trolley for loading & unloading the bobbins.
Q: What’s the difference between 22DTA and 24DTA Fine copper wire drawing machine?
A: The structure is similar, while the differences mainly lie in the max. drawing times and mechanical reduction ratio, max. drawing times on 22DTA for fine copper wire drawing, reduction ratio is 15%+8%, while 24DTA fine copper wire drawing machine can draw 24 times max., its reduction ratio is 13%+8%, so that output wire ranges of two machines are different.
Q: What payment term do you accept?
A: Usually two options: T/T and L/C.
T/T: 30% upon confirming order as down payment, 70% before delivery.
L/C: 100% sight L/C.
Packing & Delivery
Packaging details: Steel pallet.
Delivery Time: within 50 working days after confirming the order of the wire drawing machine.
