24DT Fine wire drawing machine with online annealer

1) Usage: Bare copper & copper-clad-aluminum wire drawing
2) Inlet dia.: Φ0.5mm-Φ1.0mm
3) Outlet dia.: Φ0.1mm-Φ0.3mm
4) Max. number of drawing dies: 24 pcs
零售价
0.0
市场价
0.0
数量
-
+
库存:
0
1
Details

 Product Introduction

This type is suitable for drawing bare copper & copper-clad-aluminium wire.
It has the following characteristics:
1)High quality flat belt and synchronous belt drive,with advantages of easy maintenance and low noise.
2)Dual motor drive,it can reduce the slip rate in the wire extension,And improve the quality of wire.



 Technical Parameter

Inlet dia. Φ0.2mm-Φ1.0mm
Outlet dia. Φ0.1mm-Φ0.3mm
Max. speed 2000mpm
Main machine power 15KW
Annealing power 16KVA
Take up power 3.7KW
Annealing method DC-three section annealing
Suitable spool Φ300mm(or according to customer requirement)
Correction system Automatically control
Take up capacity 50KGS-60KGS
Dynamic control Double drive control
Brake Electromagnetic control
Machine dimension 2300L*1200W*1700H(mm)
Machine weight 3000KGS



 Details for your reference

S/N Components Picture

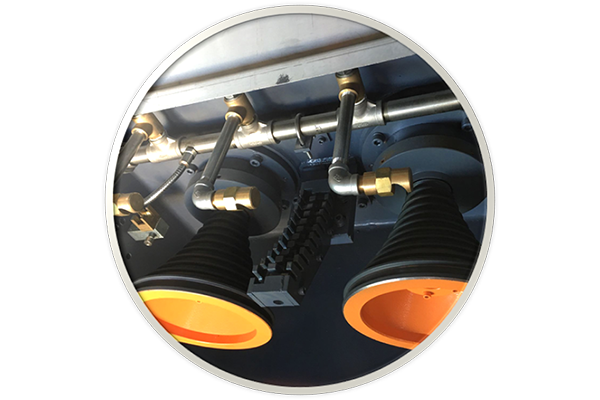

1 Drawing part

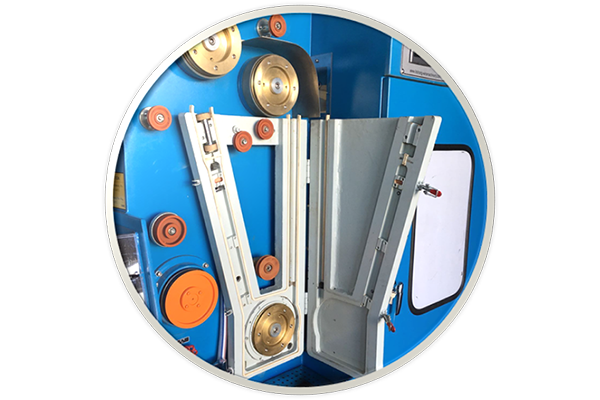

2 Annealing part

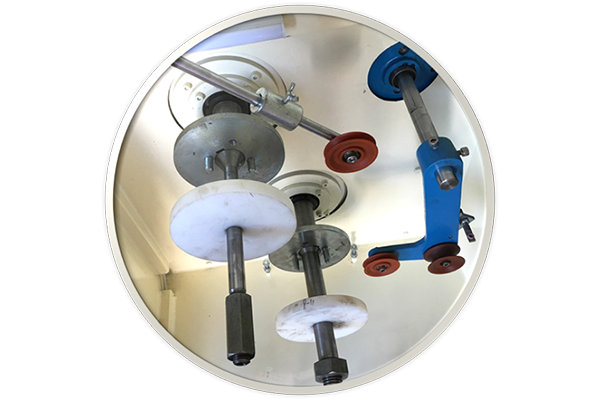

3 Take up part

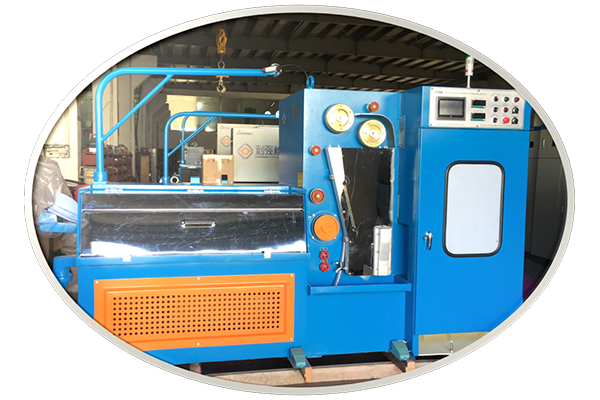

4 Overview
