Double fine wire drawing machine

Usage : Copper wire
Inlet: 2×Ф1.0mm-Ф1.2mm
Outlet: 2×Ф0.12mm-Ф0.32mm
Max.number of drawing dies:24
Max. speed: 2000 mpm
零售价
0.0
市场价
0.0
数量
-
+
库存:
0
1
Details

 Product introduction

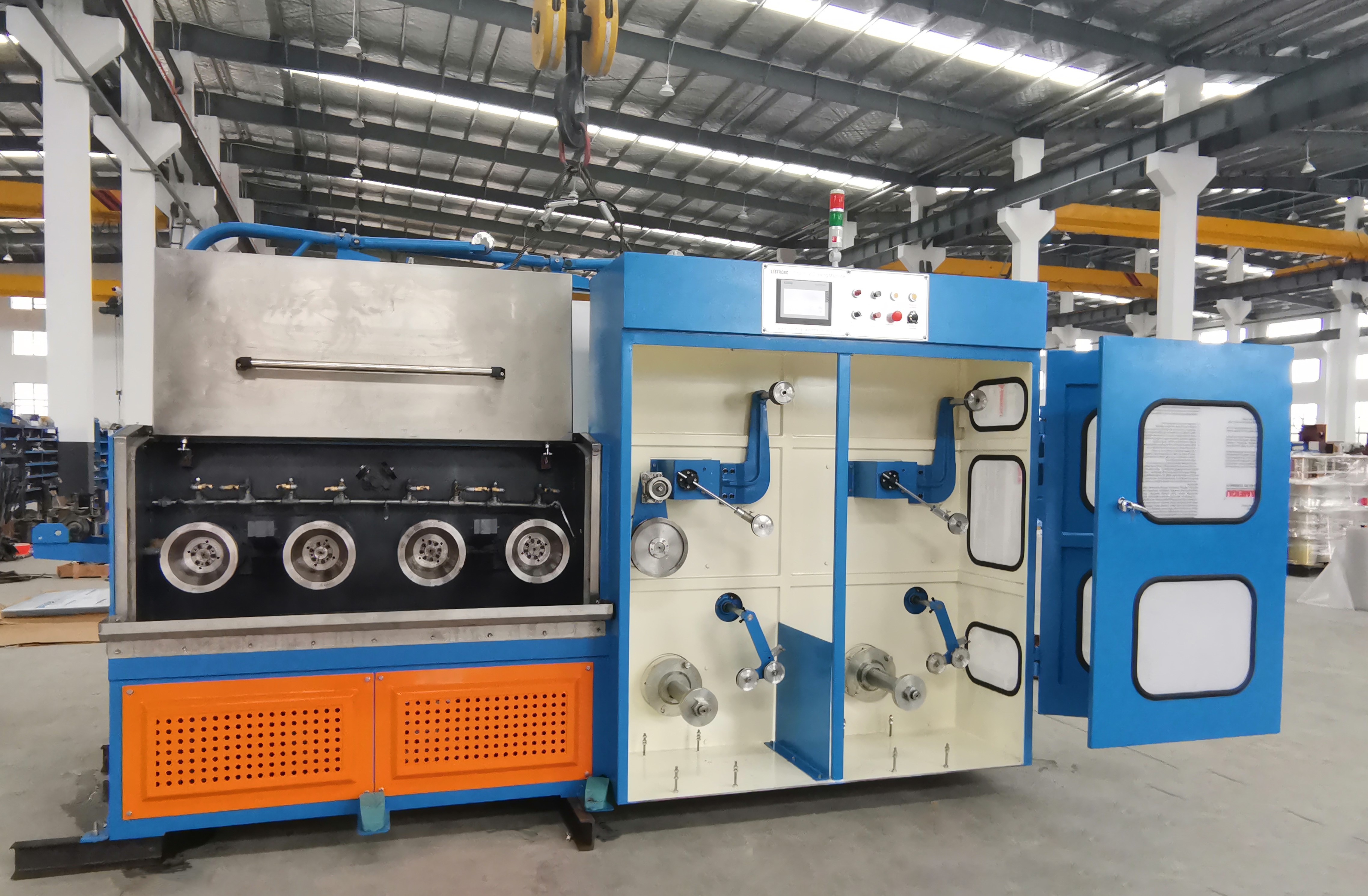

LISTRONG-24/2DW Two-wire Fine Wire Drawing Machine

Application: The Two-wire fine wire drawing machine is used for drawing copper wire. Suitable for drawing from 2×Ф1.0-Ф1.2mm to outlet dia. 2×Ф0.12mm-Ф0.32mm.



 Technical parameters

Model: LISTRONG-24/2DW Two-wire Fine Wire Drawing Machine

Serial No.

Item

Description

1

Inlet dia.

2×Ф1.0mm-Ф1.2mm

2×Ф1.0mm-Ф1.6mm

2

Outlet dia.

2×Ф0.12mm-Ф0.32mm.

2×Ф0.12mm-Ф0.4mm.

3

Max. drawing times

24

24

4

Drawing speed

2000mpm

2000mpm

5

Mode of transmission

By timing belts

By timing belts

6

Drawing capstan

Ceramic coated

Ceramic coated

7

Motor of drawing

18.5kw

22kw

8

Motor of take-up

2.2kw * 2

3.7kw * 2

9

Correction system

Automatically control

Automatically control

10

Brake

Electromagnetic brake

Electromagnetic brake

11

Bearing

NSK & SKF

NSK & SKF

 FAQ

 Q What’s the advantage of the LISTRONG-24/2DT?

 A- High efficiency,saving energy,space and labor force.

-          Dual inverters and motors control for take up,drawing stale.

-          Tension independent control,wire is not easily gets break.

-          Two options available for take up,output wire can be spooled on the same bobbin or four bobbins separately.

 Q How you can guarantee your machine quality?

 A We have strict pre-inspection and final inspection regulations, parts are purchased from famous and reliable suppliers only, each machine before dispatching must be tested with raw material to ensure the machine without any problem. Acceptance inspection by the client in our plant before dispatching is also welcome. We provide 12 months warranty period for both mechanical and electrical parts.



 Q What payment term do you accept?

 A Usually two options: T/T and L/C.

T/T: 30% upon confirming order as down payment, 70% before delivery.

L/C: 100% sight L/C.

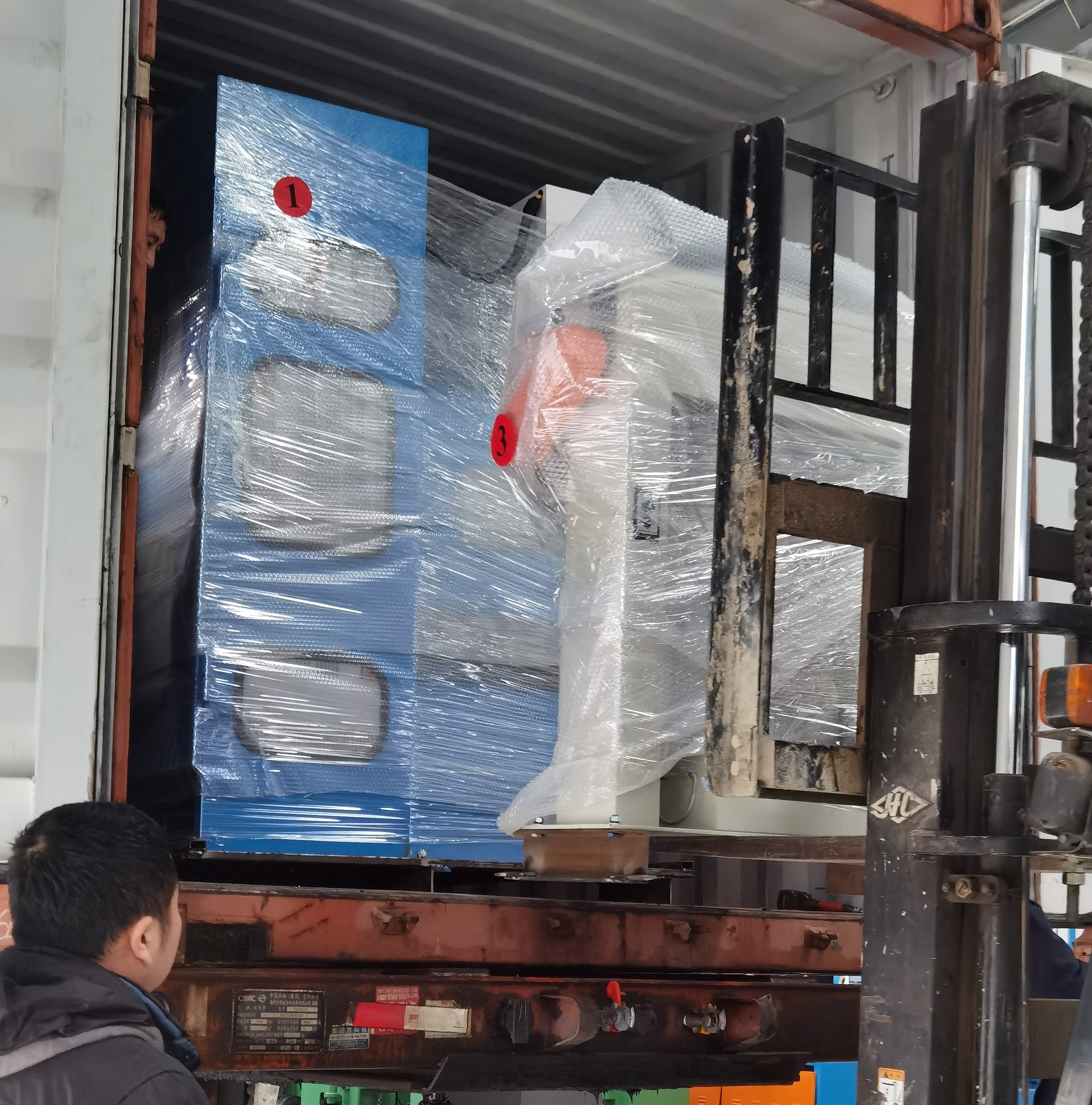

 Packing & Delivery

Packaging details: Steel pallet.

Delivery Time: within 40 working days after confirming the order of the wire drawing machine.
