Medium Wire Drawing Machine with Annealer
Inlet: Ф3.5mm-Ф3.0mm
Outlet: Ф2.0mm-Ф0.4mm
Max.number of drawing dies:17
Max. speed:1200mpm
零售价
0.0
元
市场价
0.0
元
数量
-
+
库存:
0
Details
Product introduction
LISTRONG-17DCT Copper Medium Wire Drawing Machine with Continuous Annealer

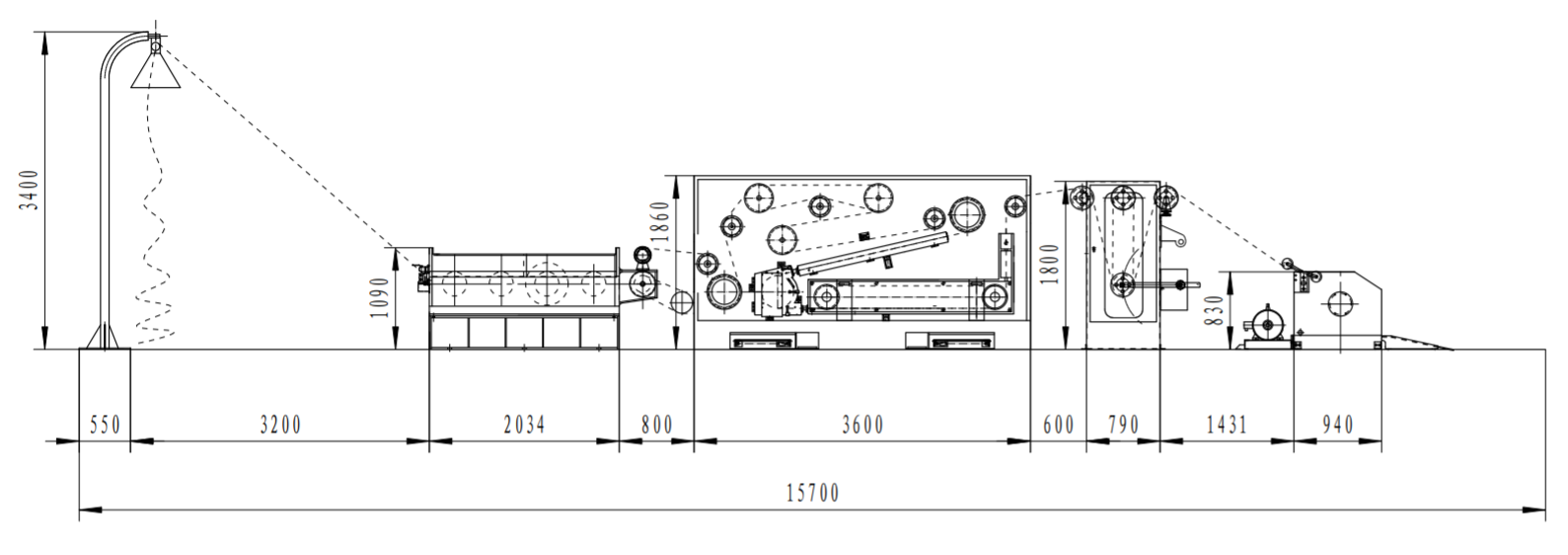

LISTRONG provides variety of copper wire drawing machines of high quality to clients throughout the world. Our 17DCT copper medium fine wire drawing machine can produce medium fine wire Ф2.0mm-Ф0.4mm. It is composed of pay off stand, drawing machine, annealing machine, steam generator, console, tension controller, take-up machine and electrical control cabinets.
Application: the copper medium fine wire drawing machine is used for copper medium fine wire drawing from Ф3.5-Ф3.0mm to Ф2.0-Ф0.4mm.
Technical parameters
Model: LISTRONG-17DCT Copper Medium Wire Drawing Machine with Continuous Annealer
|
Serial No. |
Item |
Description |
|
1 |
Inlet diameter |
Ф2.5-Ф3.5mm |
|
2 |
Outlet diameter |
Ф0.4-Ф2.0mm |
|
3 |
Max. quantity of drawing dies |
17 |
|
4 |
Max. speed(MPM) |
1200 |
|
5 |
Main machine power |
45KW |
|
6 |
Annealing machine power |
7.5KW |
|
7 |
Annealing method |
DC. three-section |
|
8 |
Annealing voltage(DC) |
60V |
|
9 |
Annealing current(DC) |
2500A |
|
10 |
Weight(KGS) |
7600 |
Drawing speed: for reference
|
Outlet diameter(mm) |
Speed |
|
0.80-1.2mm |
900-1200m/min |
|
1.2-2.0mm |
400-900 m/min |
FAQ
Q： What are the features of LISTRONG-17DCT copper medium fine wire drawing machine?
A：1. Power control: Dual motor with dual frequency converter control.
2. Drawing method: four horizontal shafts and slip type drawing.
3. Transmission method: by gear and triangle belt
4. Stop automatically: machine stop automatically when bobbin is fully loaded or wire breaks.
5. High quality components applied.
Q: What’s the delivery time for LISTRONG-17DCT copper medium fine wire drawing machine?
A：Within 60 working days after confirming the order of the copper medium fine wire drawing machine.
