Medium wire drawing machine
Inlet: Ф3.5mm-Ф2.5mm
Outlet: Ф1.6mm-Ф0.4mm
Max. number of drawing dies:17
Maximum speed: 1800M/MAX
零售价
0.0
元
市场价
0.0
元
数量
-
+
库存:
0
Details
Product introduction

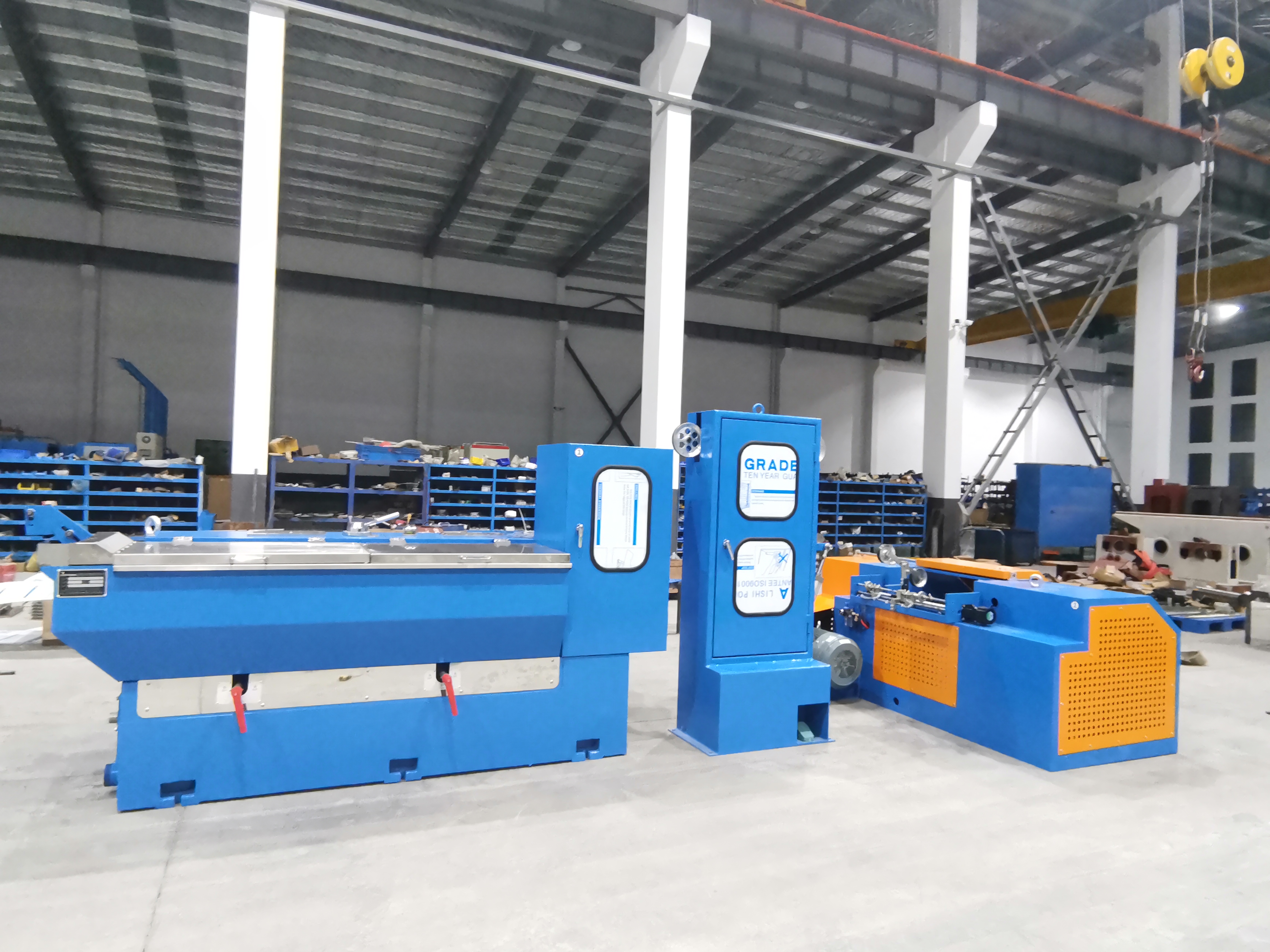

LISTRONG-17DS Medium Wire Drawing Machine
Application: The medium wire drawing machine is used for drawing copper wire. Suitable for drawing from Ф3.5-Ф2.5mm to outlet dia.Ф1.6mm-Ф0.4mm.
Technical parameters
Model: LISTRONG-17DS Medium Wire Drawing Machine
|
Inlet dia. (mm) |
Ф3.5-Ф2.5mm |
|
Outlet dia. (mm) |
Ф1.6-Ф0.4mm |
|
Max. speed (mpm) |
1800 |
|
Max number of drawing dies |
17 |
|
Slip ratio of M/C |
20% |
|
Fix speed capstan slip ratio |
15.5% |
|
Main machine power |
55KW |
|
Take up power |
15KW |
|
Annealing power |
7.5KW |
|
Traversing |
Traversed by 90W motor with position limited switch |
FAQ
Q： What’s the components of the LISTRONG-17/2DST?
A：- Pay-off stands 1 set
- Main drawing machine 1 set
- Electrical control system 1 set
- Pneumatic tension controller 1 set
- WS630 Take up machine without shaft 1 set
- Pointer 1 set
- Console 1 set
- User's manual (specification, instruction, machine structure drawing, die arrangement, foundation drawing, fault resolution, maintenance, consumables drawing, electrical drawing, frequency instruction) 1 set
- Spare parts
Packing & Delivery
Packaging details: Steel pallet.
Delivery Time: within 60 working days after confirming the order of the wire drawing machine.
