17DCT Medium Wire Drawing Machine with Continuous Annealing
Outlet diameter:Φ0.8mm-Φ2.8mm Or Φ0.5mm-Φ2.0mm
Max. number of drawing dies:17pcs
零售价
0.0
元
市场价
0.0
元
数量
-
+
库存:
0
Details
Product Introduction
1.The design of the whole machine is apply human and mechanical engineering principal, reasonable and reliable in structure and easy operated.
2.The medium wire drawing machine is developed and designed based on sophisticated technology abroad. The transmission part of the main machine applied the high precision sturdy helical gear, the gear is using high precise grinding craft, which ensure the high precision and low noise of the machine.
3.Complete immersed cooling method ensures the sufficient immersed of wire and drawing die in the drawing lubricant, which not only help to get good surface of the wire, but also prolong life span of the drawing die and capstan. The drawing capstan and fix speed capstans are tungsten coated.
Technical Parameter
| Inlet diameter | Φ3.0mm-Φ3.5mm |
| Outlet diameter | Φ0.8mm-Φ2.8mm Or Φ0.5mm-Φ2.0mm |
| Max. speed | 1200mpm |
| Max. number of drawing dies | 17pcs |
| Slip ration of M/C | 18% |
| Fix speed capstan ratio | 12.5% |
| Capstan | Tungsten coated |
| Max. capstan dia. | Φ260mm |
| Frame | Welded |
| Main machine power | 45KW AC motor |
| Take up power | 15KW AC motor |
| Annealer driving motor | 11KW Or 7.5KW AC motor |
| Dynamic control | Double frequency inverters control |
| Transmission method | By gear |
| Pay off method | Over head |
| Traversing method | Decelerate motor |
| Tension control | Pneumatic balance by swing arm |
| Lubrication system of drawing | Half-immersing+Spray type |
| Suitable spool | Φ630mm/Max. |
| Take up capacity | 1200-1800KGS |
| Brake | Pneumatic brake |
Main Components of Machine
| S/N | Component | Picture | Remark |

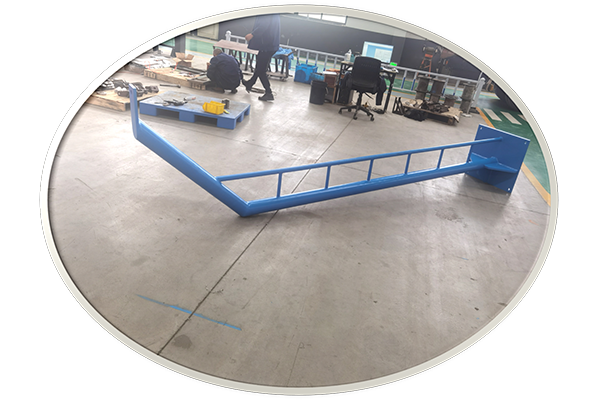

| 1 | Pay off stand |
 |
1 set |

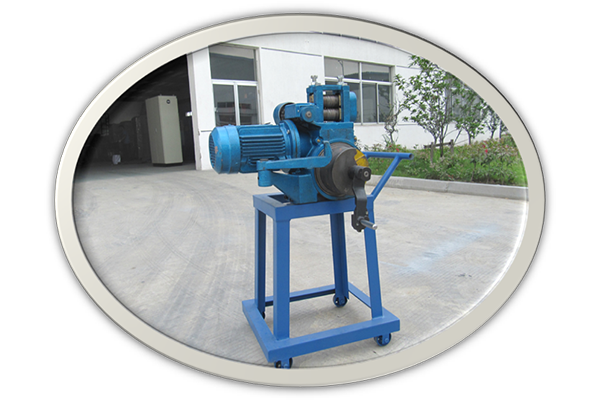

| 2 | Pointing machine |
 |
1 set |

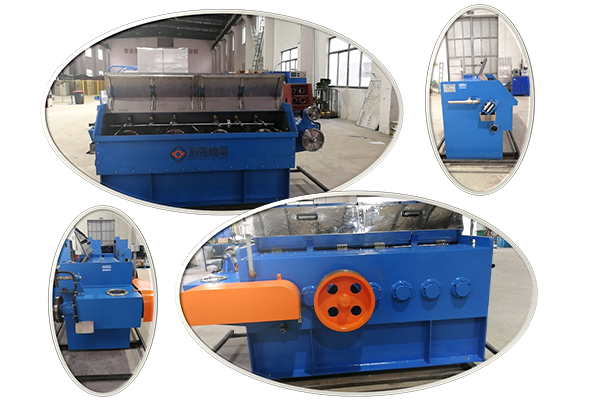

| 3 | Main machine |
 |
1 set |

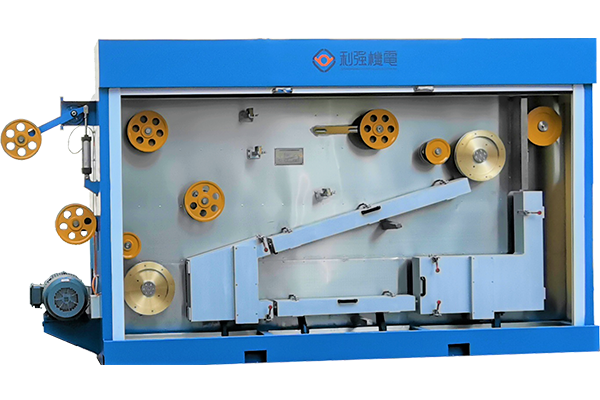

| 4 | Annealing machine |
 |
1 set(Optional) |

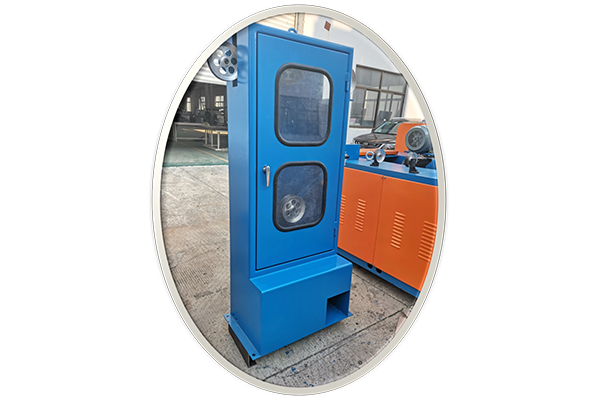

| 5 | Dancer |
 |
1 set |

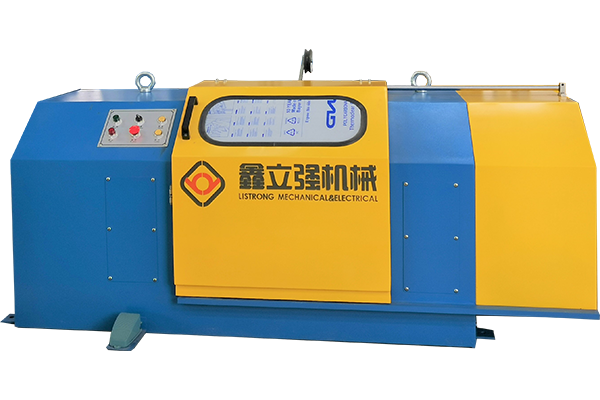

| 6 | Take up machine without shaft |
 |
1 set |

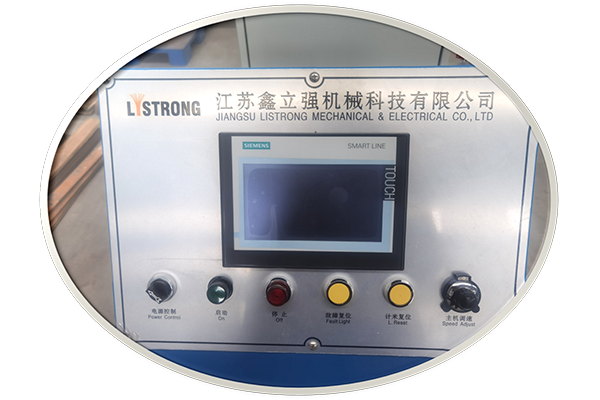

| 7 | Console |
 |
1 set |
