1
/
1
Fine wire drawing machine with annealer
Inlet : Ф1.0mm-Ф0.5mm
Outlet: Ф0.25mm-Ф0.08mm
Max.number of drawing dies:24
Max. speed: 2000mpm
零售价
0.0
元
市场价
0.0
元
数量
-
+
库存:
0
Details
Product introduction

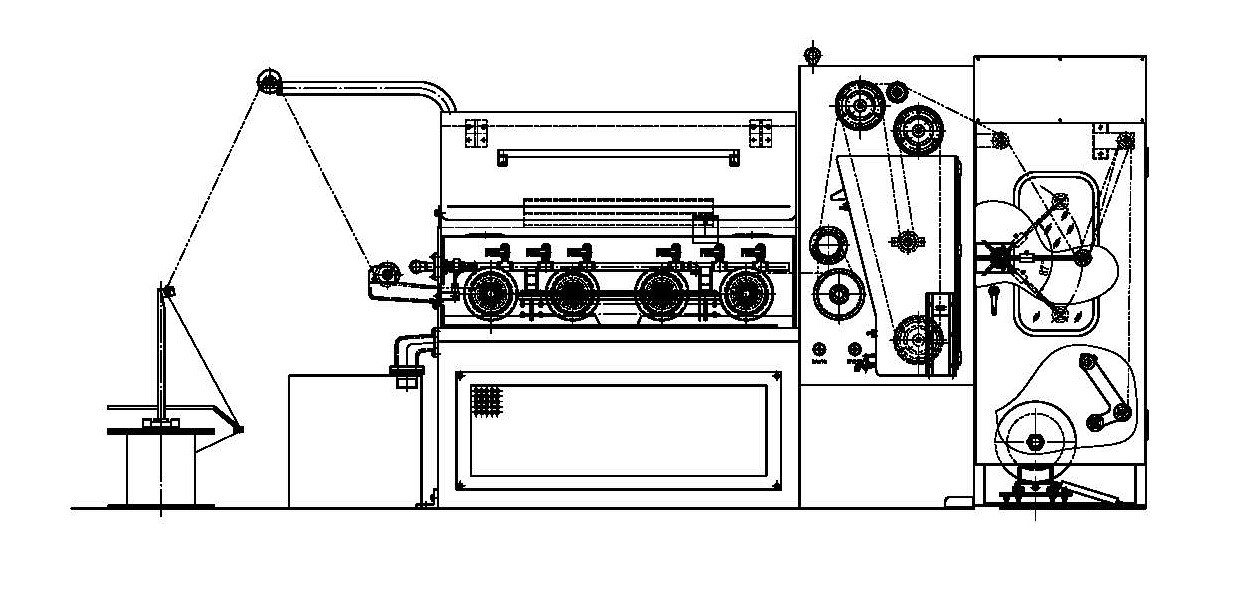

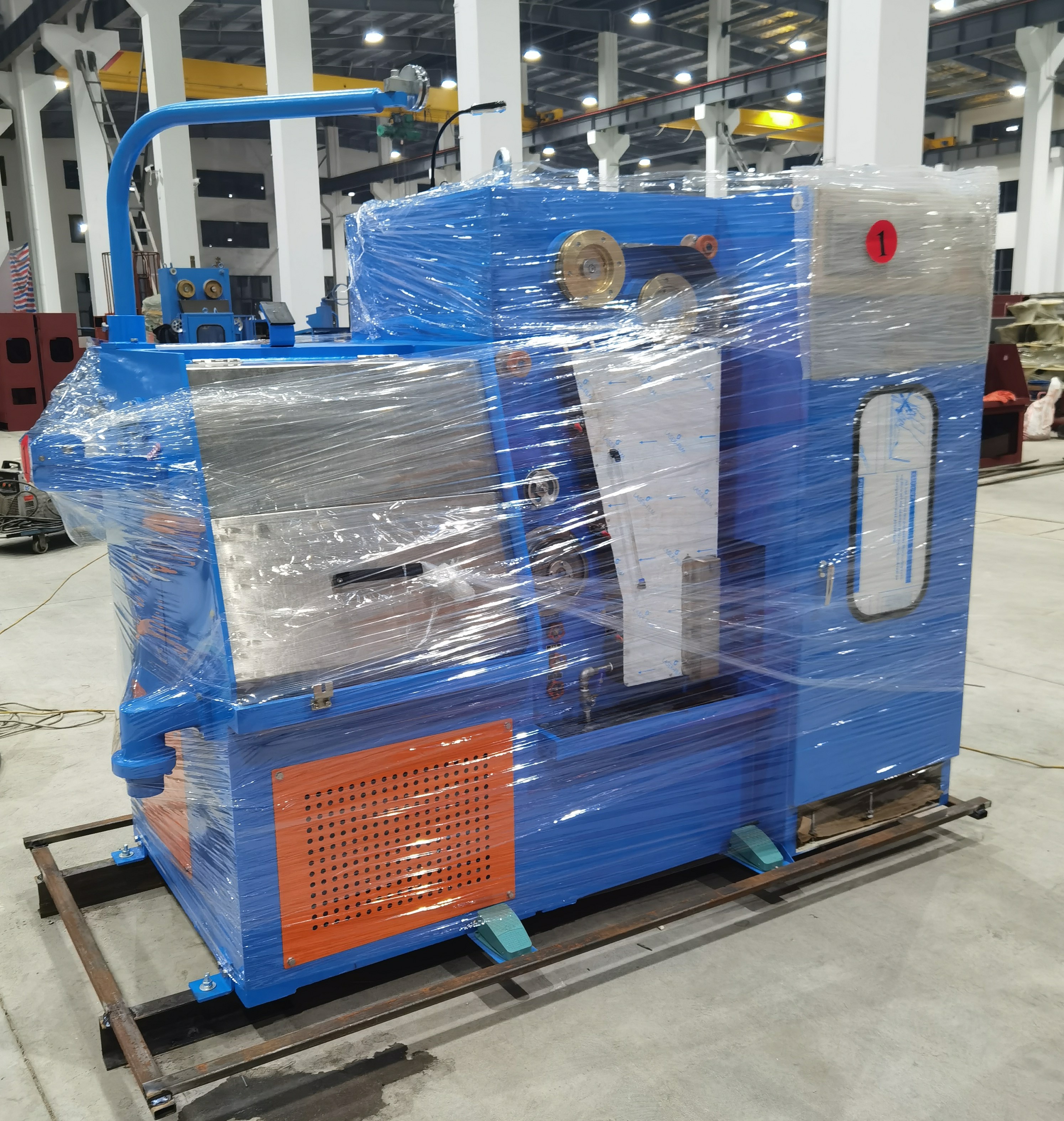

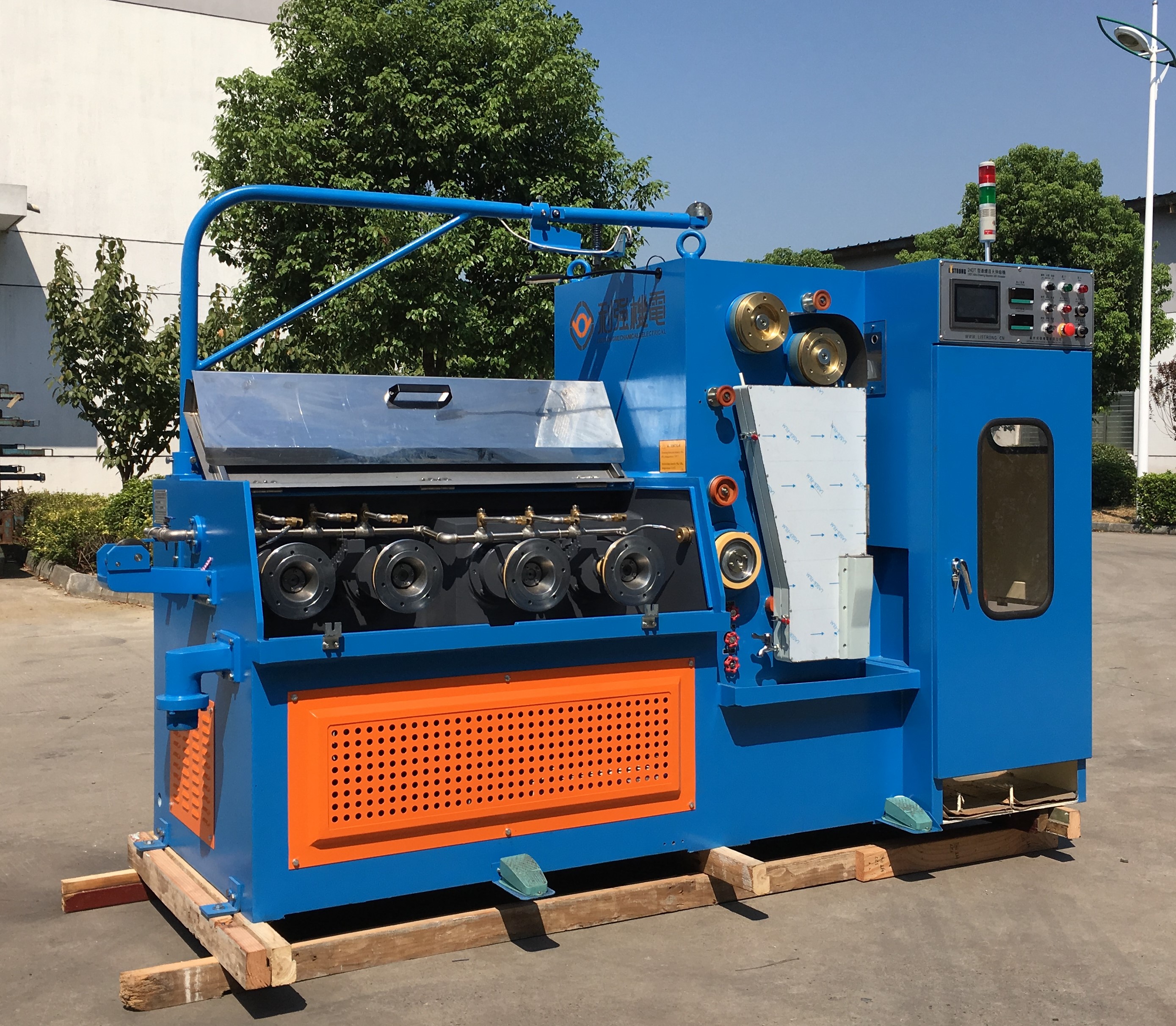

LISTRONG-24DT Fine wire drawing machine with continuous annealer
To increase the production of copper wire in different sizes, the wire drawing machine is widely used in cable industry. The offered machine is manufactured by making use of top grade components under the supervision of our technical experts. We always focus on the performance and quality of the automatic wire drawing machine to fulfill diverse needs of clients.
The wire drawing machine is equipped with online continuous annealing so that wire can be drawn and annealed after one process.
Technical Parameters
Model: LISTRONG-24DT Fine wire drawing machine with continuous annealer
|
Serial No. |
Item |
Description |
|
1 |
Inlet dia. |
Ф1.0mm-Ф0.5mm |
|
2 |
Outlet dia. |
Ф0.25mm-Ф0.08mm |
|
3 |
Max. drawing times |
24 |
|
4 |
Drawing speed |
2000mpm |
|
5 |
Mode of transmission |
By timing belts |
|
6 |
Drawing capstan |
Ceramic coated |
|
7 |
Annealing power |
16KVA |
|
8 |
Motor of drawing |
15kw |
|
9 |
Motor of take-up |
3.7kw |
|
10 |
Correction system |
Automatically control |
|
11 |
Brake |
Electromagnetic brake |
|
12 |
Bearing |
NSK & SK |
FAQ
Q: What’s the LISTRONG-24DT Automatic wire drawing machine composed of?
A:This 24DT automatic wire drawing machine is equipped with continuous annealing machine / annealer, generally composed of payoff stand, main machine, annealing control panel, steam generator, trolley for loading & unloading the bobbins.
Q: How you can guarantee your machine quality?
A: We have strict pre-inspection and final inspection regulations, parts are purchased from famous and reliable suppliers only, each automatic wire drawing machine before dispatching must be tested with raw material to ensure the machine without any problem. Acceptance inspection by the client in our plant before dispatching is also welcome. We provide 12 months warranty period for both mechanical and electrical parts.
Packing & Delivery
Packaging details:Steel pallet.
Delivery Time:within 50 working days after confirming the order of the wire drawing machine.
Our service
1>The machine will be tested and checked at our workshop before delivery.
2>Warranty: 13 months since the B/L date.
3>After one year, we will supply accessories are provided only one the cost price.
4>Free production technology and process configuration.
5>Installation: Skilled technician to buyer’s country after confirmation that the goods arrived in site and civil works completed get ready for installation.
6>We will reply you within 24 hours for any problem or requirement.
