24VB Stainless steel super fine wire drawing machine

Inlet diameter: Φ0.45mm-Φ0.7mm
Outlet diameter:Φ0.03mm-Φ0.12mm
Max. numeber of drawing dies:24pcs
零售价
0.0
市场价
0.0
数量
-
+
库存:
0
1
Details

 Product Introduction

Stable performance,easy to operate.

Automatically follow take-up tension.

Double-cone take up bobbin with shaft driving spooling to ensure constant tension inside and outside.

Drawing capstans arranged horizontally is easy to operate.



 Technical Parameter



Inlet diameter Φ0.45mm-Φ0.7mm
Outlet diameter Φ0.03mm-Φ0.12mm
Max.speed 1200mpm
Max. numeber of drawing dies 24 pcs
Slip ratio of M/C 9%
Fix speed capstan slip ratio 6%
Capstan Ceramic coated
Max.capstan diameter Φ120mm
Fix speed capstan diameter Φ120mm
Frame Cast
Main machine power 5.5KW
Take up power 2.2KW
Correction system Automatically control
Dynamic control Double frequency converters control
Traversing method Flat belt
Transmission method Flat belt
Lubrication system of drawing Immersing+spray type
Suitable spool DIN200mm
Take up capacity 5-15kg
Brake Pneumatic brake



 Details for you reference

S/N Components Picture

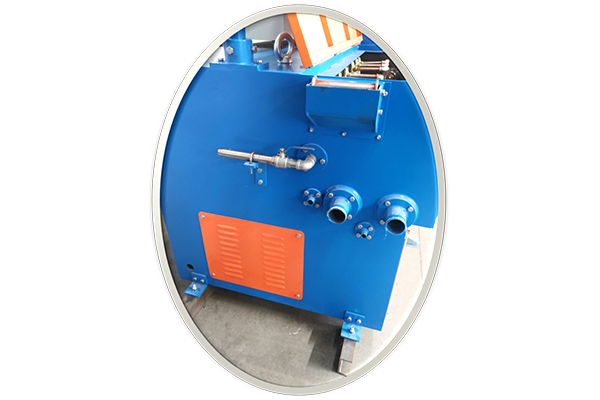

1 Inlet part

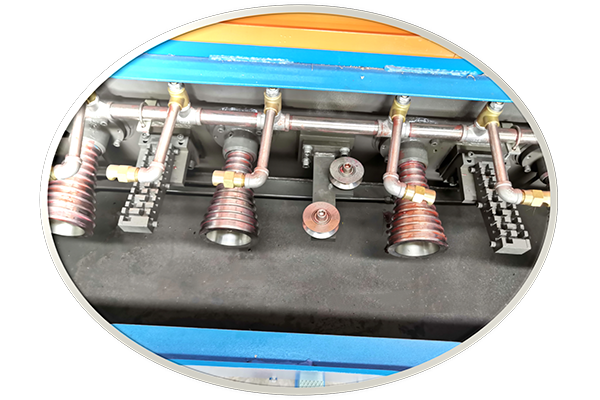

2 Drawing part

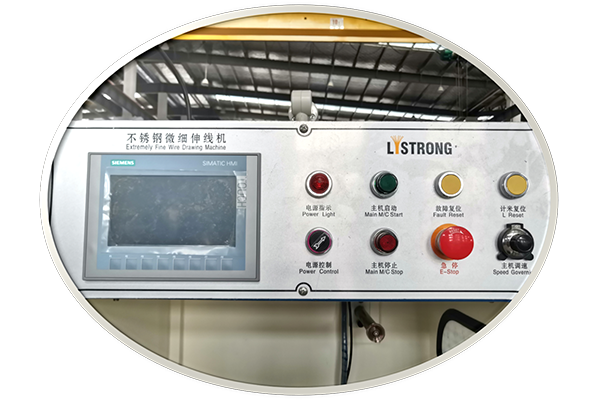

3 Console

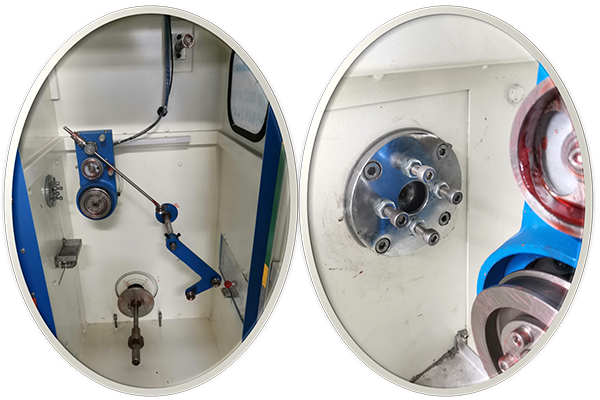

4 Take up part

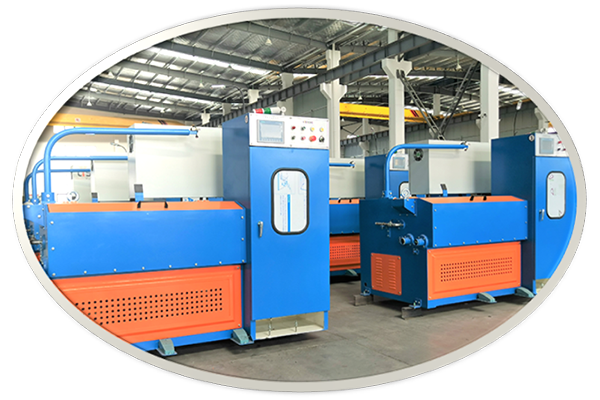

5 Overview
