24DBX Steel wire drawing machine

1) Inlet diameter: Φ0.5mm-Φ1.2mm
2) Outlet diameter : Φ0.1mm-Φ0.3mm
3) Max. number of drawing dies: 24
零售价
0.0
市场价
0.0
数量
-
+
库存:
0
1
Details

 Product Introduction

This steel drawing machine is suitable for drawing stainless steel wire.

1, Full immersion lubrication system, synchronous belt drive, with constant tension, low noise, high efficiency and other characteristics.
2. Special tool steel material is used for capstan.
3, The equipment adopts PLC control, double motor, double frequency conversion, color touch screen display.
4. Special straightening device is added to the export die, and the finished product wire is conducive to the release and annealing of the following process.
5. Stepper motor is used to arrange wiring, which is adjustable and smooth.
6. The disorderly wire protection device is installed at the pay off place. The disorderly or broken wire can stop by itself.


 Technical parameters



Type 24DBX-A 24DBX-B
Inlet diameter Φ0.5mm-Φ1.2mm Φ1.0mm-Φ1.4mm
Outlet diameter Φ0.1mm-Φ0.3mm Φ0.25mm-Φ0.5mm
Max. speed 800mpm 600mpm
Max. number of drawing dies 24 24
Slip ratio of M/C 13% 13%
Fix speed capstan slip ratio 8% 8%
Capstan Bearing steel Bearing steel
Max. capstan dia. Φ202mm Φ202mm
Fix speed capstan dia. Φ167mm Φ167mm
Frame Cast Cast
Main machine power 11KW 15KW
Take up power 3.7KW 3.7KW
Correction system Automatically control Automatically control
Dynamic control Double frequency converters control Double frequency converters control
Traversing method Flat belt+Synchronous motor Flat belt+Synchronous motor
Transmission method Timing belt Flat belt
Lubrication system of drawing Immersing+spray type Immersing+spray type
Suitable spool Φ300mm Φ300mm
Take up capacity 50kgs 50kgs
Brake Pneumatic brake Pneumatic brake
Machine dimension 2300L*1300W*1900H(mm) 2300L*1300W*1900H(mm)
Machine weight 2500kgs 2500kgs



 Details for your reference

S/N Description Pictures

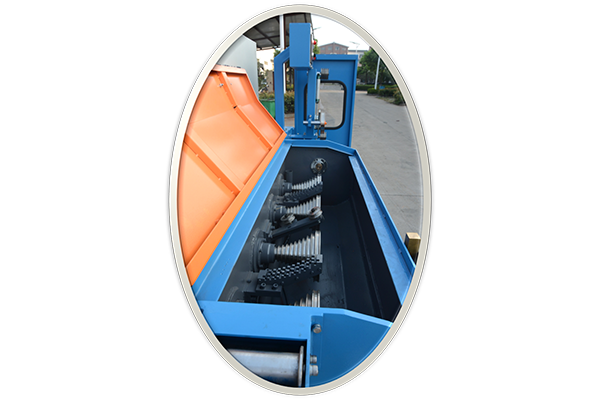

1 Cone

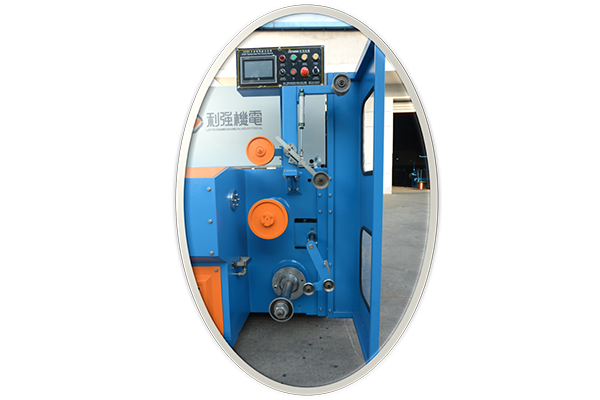

2 Take up part

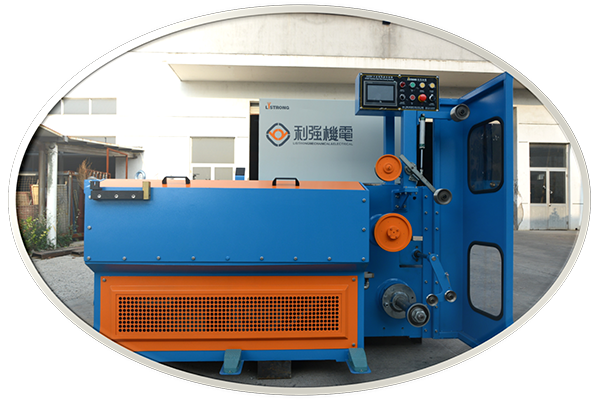

3 Overview
