800P Double Twist Bunching Machine
Inlet wire diameter(mm):Φ0.3mm-Φ1.32mm
Twisting section(mm2):2.5-16
Twisting interval(mm):30(29.06mm-157mm)
零售价
0.0
元
市场价
0.0
元
数量
-
+
库存:
0
Details
Product introduction

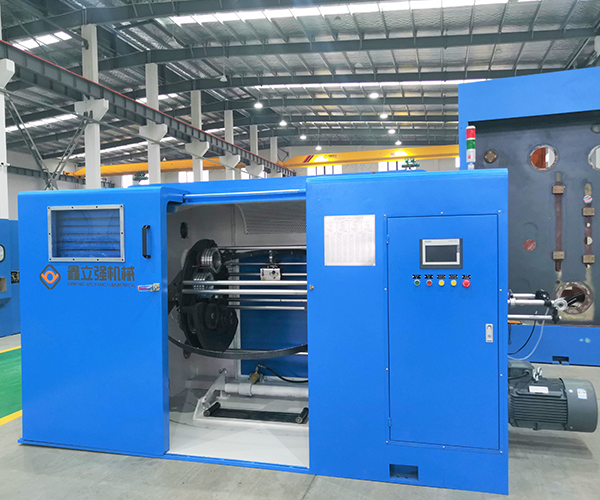

LISTRONG-800P Double Twist Bunching Machine
Technical parameters
Model: LISTRONG-800P High speed stranding machine
|
Serial No. |
Item |
800P |
|
1 |
Max. rotating speed |
1200RPM |
|
2 |
Inlet wire diameter(mm) |
Φ0.30mm-Φ1.32mm |
|
3 |
Twisting section(mm2) |
2.5-16 |
|
4 |
Twisting interval(mm) |
30 (29.06mm-157mm) |
|
5 |
Direction of twist |
S or Z adjustable |
|
6 |
Take up spool (mm) |
Φ800mm×L600/max |
|
7 |
Reel top (mm) |
To be supplied as per spool size |
|
8 |
Smooth rod rewinder |
Φ30mm |
|
9 |
Main shaft center |
1000mm |
|
10 |
Main shaft lubrication |
Grease lubrication |
|
11 |
Main motor power |
15KW |
|
12 |
Machine dimension |
3595*1950*1800 |
FAQ
Q: What’s the features of 800P High speed stranding machine?
A: The stranding machine is matched with the active take up machine to complete the winding composite cable of four pairs of core wires;
The pitch is stable, and the stranding machine is fully enclosed for high speed and safety.
Q: Are you a factory or trading company?
A: Our company is a manufacturer located in Suzhou, China, specializing in all kinds of wire and cable making machines, including copper rod breakdown drawing machine, fine wire drawing machine, annealing machine, and bunching machine etc. We will provide not only quality products but also the best service to the customers at home and abroad, with over 20 years’ experience in manufacturing and over 10 years’ exporting.
Q: What payment term do you accept?
A: Usually two options: T/T and L/C.
T/T: 30% upon confirming order as down payment, 70% before delivery.
L/C: 100% sight L/C.
Packing & Delivery
Packaging details: Steel pallet.
Delivery Time: within 30 working days after confirming the order of the wire drawing machine.
