Double Twist Bunching Machine

1) Max.rotating speed:2000rpm
2) Inlet wire diameter:Φ0.18mm-Φ0.62mm
3) Twisting section:0.18mm2-6mm2
4) Twisting interval:34(11.6mm-66.1mm)
零售价
0.0
市场价
0.0
数量
-
+
库存:
0
1
Details

 Product Introduction

LISTRONG-650P Double Twist Bunching Machine
This series of Double Twist Bunching Machine is designed for all kinds of soft/hard line conductor (copper wire, enameled wire, tin wire, copper clad steel, copper clad aluminum, etc.)and electronic wire twisted, such as the power cord, telephone lines, audio lines, video lines, car line, network line, etc.
With advantages of exquisite, the craft is mature, reasonable structure, stable running, high quality, efficient, well received praised by all kinds of customers.



 Technical Parameter

Max.rotating speed 2000RPM
Inlet wire dia. Φ0.18mm-Φ0.62mm
Twisting section 0.18mm2-6mm2
Twisting interval 34(11.6mm-66.1mm)
Direction of twist S or Z adjustable
Take up spool Φ650*L475/max.
Reel top Φ50-Φ127 to be supplied as per spool size
Smooth rod rewinder Φ30mm
Main shaft center 850mm
Main shaft lubrication Thin oil lubrication
Main motor power 7.5KW
Machine dimension 3200L*1480W*1440H (mm)

 Pictures for your reference

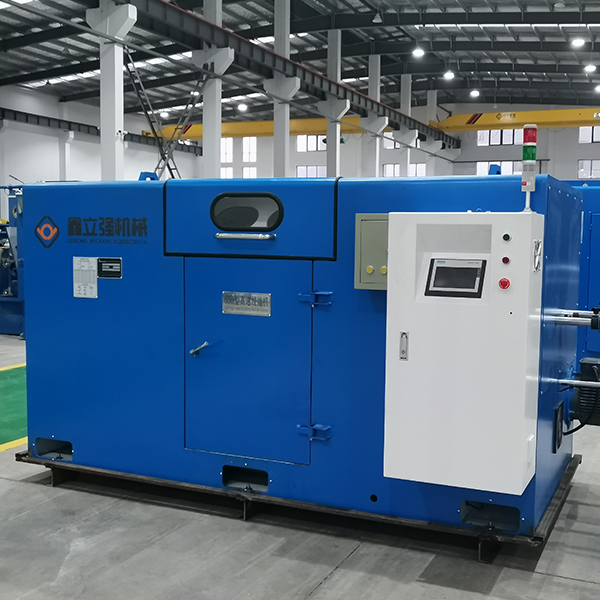

1)Appearance

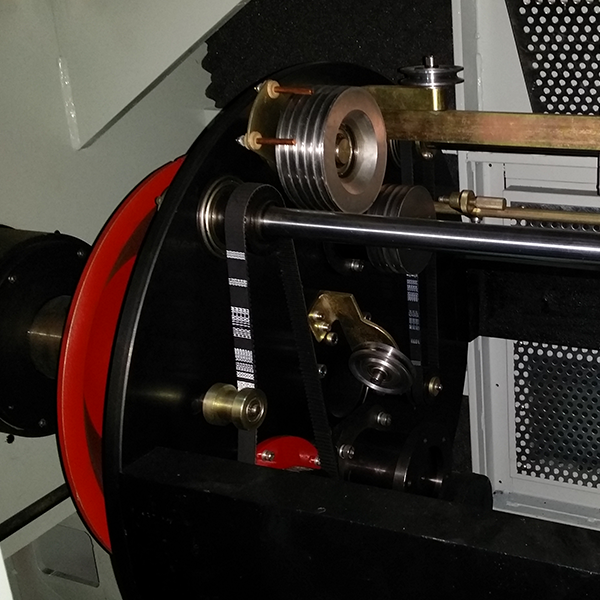

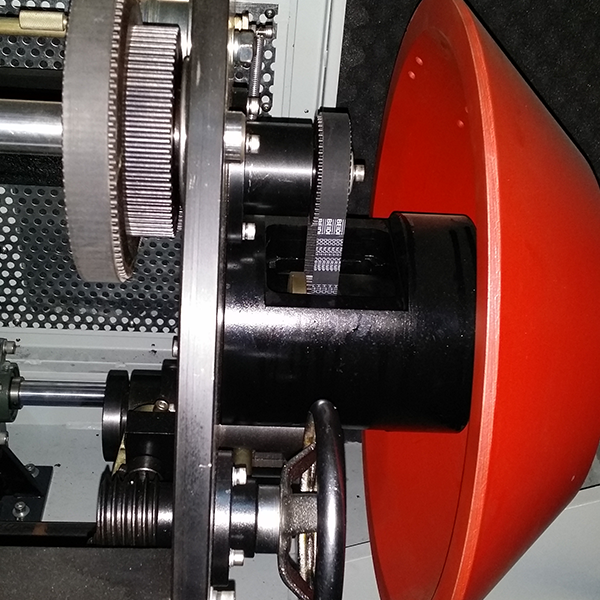

2)Internal

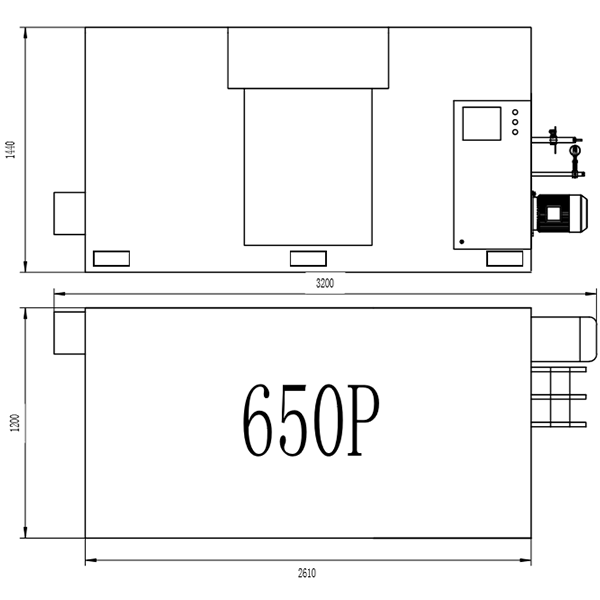

3)Foundation
