Product introduction

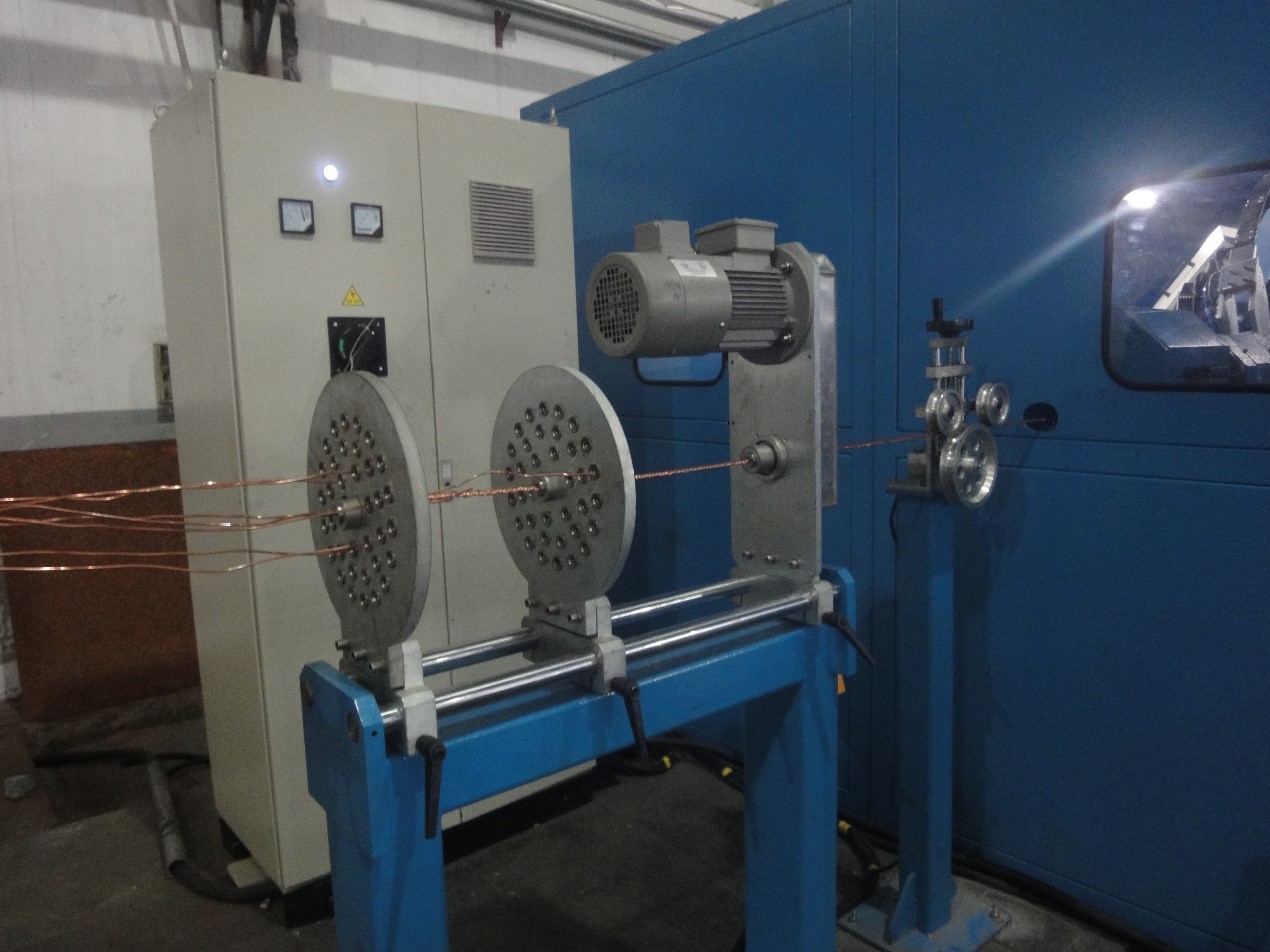

LISTRONG-1250D Double Twist Bunching Machine
The project contains an external rotation pressure die structure which provides the required traction for compressing conductor. When compressing the conductor, the bundling machine take-up obtains. The double-twisting machine has a special line way to reduce rotating torque between traction capstan and take-up bobbin, can ensure conductor in round shape.
Application: This equipment is specially used to twist aluminum and copper round compressed conductor, suitable for copper wire, aluminum wire and PVC insulated wire under 7 strands conductor to concentric twisted, mainly used for cross section 50mm2.
Technical parameters
Model: LISTRONG-1250D Double Twist Bunching Machine
|
Serial No. |
Item |
Description |
|
1 |
Machine type |
φ1250D |
|
2 |
ID of copper wire |
φ1.0mm-φ3.0mm |
|
3 |
Stranded OD of copper wire |
φ10mm/max. |
|
4 |
Stranded OD of insulated wire |
φ15mm/max. |
|
5 |
Stranded section (flexible strands) |
3.5+70mm2(6AWG-450MCM) |
|
6 |
Stranded section ( Semirigid 1+6) |
3.5+50MM2(6-1/0AWG) |
|
7 |
Cu compressed section |
3.5÷50mm2(6AWG-300MCM) |
|
8 |
Al compressed section |
3.5÷70mm2(6AWG-300MCM) |
|
9 |
Max. line speed |
150m/min |
|
10 |
Strand pitch |
40-350mm |
|
11 |
Cradle flyer rotation speed |
800rpm/max.( 1600TPM) |
|
12 |
Max. load weight |
3000kg |
|
13 |
Max. compressed angle |
13% |
|
14 |
Traction capstan |
2×600mm |
|
15 |
Stranding direction |
S/Z direction |
|
16 |
Main motor |
55kw DC |
|
17 |
Capstan motor |
30kw DC motor |
|
18 |
Take-up motor |
7.5kw DC motor |
|
19 |
Traversing motor |
0.75KW |
|
20 |
Rotating die power |
0.75kw inverter motor |
|
21 |
Loading & unloading power |
1.5kw inverter motor |
|
22 |
Power control |
Digital type DC control |
|
23 |
Revise system |
Line speed synchronous auto control |
|
24 |
Take up spool OD |
1250mm/max. |
|
25 |
Take-up spool outer width |
950×800×80(mm) |
|
26 |
Control system |
PLC+HMI |
|
27 |
Take-up tension control |
Take-up motor indicates tension control |
|
28 |
Pitch setting |
PLC digitalization setting |
|
29 |
Traversing width |
1000mm/max. |
|
30 |
Traversing unit |
Digitalization setting as per wire diameter |
|
31 |
Fixing method of take-up spool |
Pneumatic shaftless type |
|
32 |
Spool loading & unloading |
Liquefaction automatic positioning |
|
33 |
Brake |
Pneumatic disc brake |
|
34 |
Bearing lubrication type |
Oiling regularly |
|
35 |
Air pressure |
6kg/cm2 |
|
36 |
Machine dimension |
6030L×2280W×2280H |
FAQ
Q: What’s the delivery time for LISTRONG-1250D Double Twist Bunching Machine?
A：Within 60 working days after confirming the order of the copper medium fine wire drawing machine.
