1
/
1
Rod Breakdown Machine
Inlet: Max.Φ9.5mm
Outlet:Φ1.6-φ3.8mm
Max.speed: 900mpm
零售价
0.0
元
市场价
0.0
元
数量
-
+
库存:
0
Details
Product introduction
LISTRONG-670/13DL Aluminum Rod Breakdown machine
With the help of our experts, LISTRONG offers our range in different specifications that meet the individual requirement of our clients in the best possible manner. Furthermore, our range us exclusively designed for aluminum and copper wires along with spooling machines and dead block coilers.
Our rod breakdown machines for copper, aluminum and relative alloys are designed and produced in order to satisfy the challenging needs of the industry as having a thinner wire diameters, flexibility and high tensile strength.
Application: 670/13DL Aluminum Rod Breakdown machine is applicable for aluminum rod breakdown drawing from inlet dia. 9.5mm/max to outlet dia. 1.6-3.8mm.
Main components of machine:
|
Serial No. |
Item Name |
Qtty. |
|
1 |
Pay-off stand |
1 set |
|
2 |
450/13D rod breakdown machine |
1 set |
|
3 |
Tension controller |
1 set |
|
4 |
Dual spooler |
1 set |
|
5 |
Electrical cabinet |
1 set |
|
6 |
Pointing machine |
1 set |
|
7 |
Spare parts |
1 set |

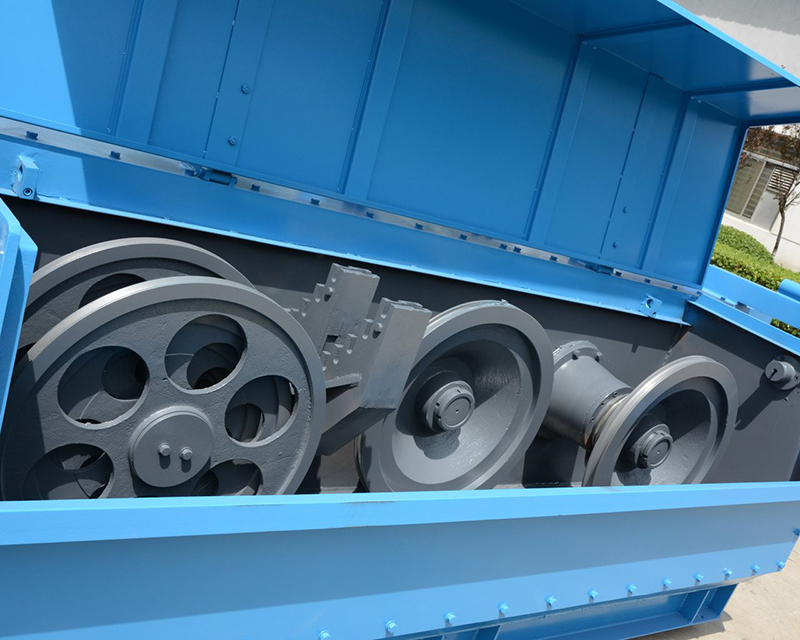

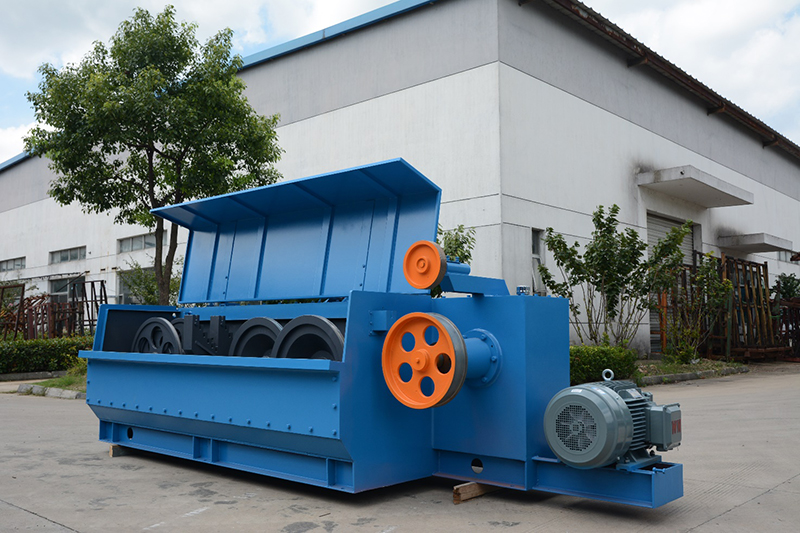

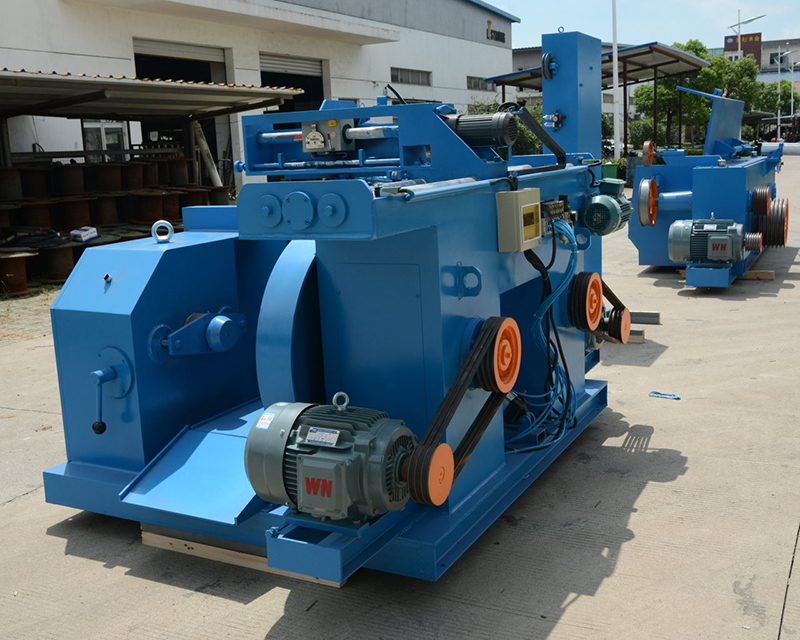

Pictures of Aluminum Rod Breakdown machine:
Technical parameters
Model: LISTRONG-670/13DL Aluminum Rod Breakdown machine
| Serial No. |
Item |
Description |
|
1 |
Inlet dia. |
Φ9.5mm |
|
2 |
Outlet dia. |
Φ1.6-φ3.8mm |
|
3 |
Max. drawing times |
13 |
|
4 |
Drawing speed |
900mpm |
|
5 |
Fixed speed capstan dia. |
φ450mm |
|
6 |
Total deduction ratio |
96.8% |
|
7 |
Lubricating and cooling mode |
outer cycling spray |
|
8 |
Take-up motor |
11kw*2 sets |
|
9 |
Machine contour size |
8000kgs |
FAQ
Q： What bobbins suitable for the 670/13DL Aluminum Rod Breakdown machine?
A：φ500/φ630 bobbins are suitable for the dual spooler, we can also design as per the customer’s bobbin size. Drop coiler is also available for option.
Q： What key features does the 670/13DL Aluminum Rod Breakdown machine have?
A：1. Horizontal structure, dual driving motors.
2. High precision gear transmission, high efficiency, low noise.
3. Half immersing and spraying way to lubricate and cool, which can guarantee the quality of drawing wire.
Q： What’s the lead time of the 670/13DL Aluminum Rod Breakdown machine?
A： Within 45 working days after confirming the order of the copper rod breakdown machine.
