Super fine wire draiwng machine
Product introduction

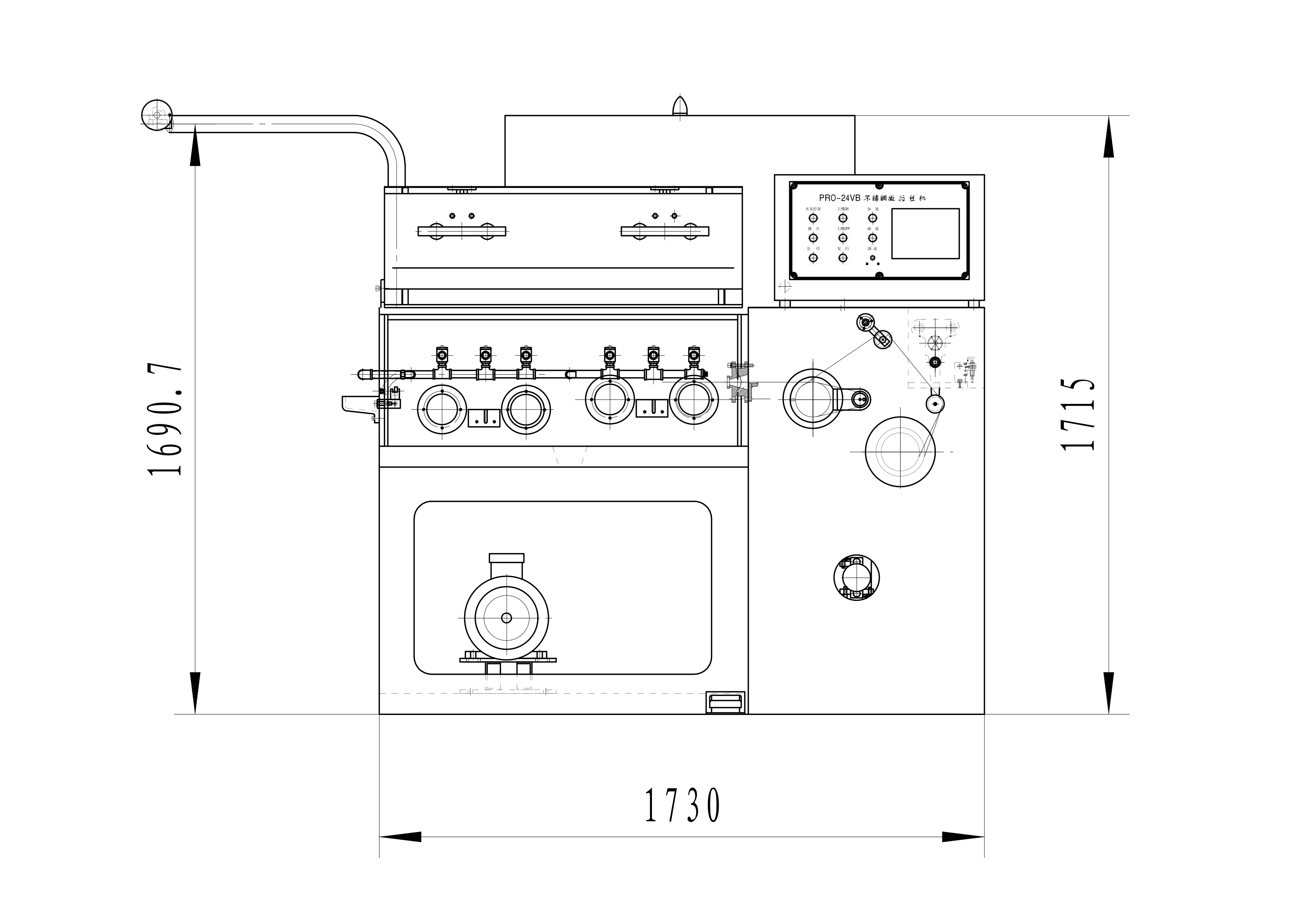

LISTRONG-24VB Super fine wire drawing machine
Stable performance ,easy to operate.
Automatically follow take up tension,
Double-cone take up bobbin with shaft driving spooling to ensure constant tension inside and outside.
Drawing capstans arranged horizontally is easy to operate
Application: LISTRONG-24VB Super fine wire drawing machine is suitable for stainless steel wire drawing from inlet Φ0.45mm-Φ0.7mm to outlet Φ0.03mm-Φ0.12mm
Technical parameters
Model: LISTRONG-24VB Super fine wire drawing machine
Serial No. |
Item |
24VB |
1 |
Inlet diameter(MM) |
Φ0.45-Φ0.7 |
2 |
Outlet diameter (MM) |
Φ0.03-Φ0.12 |
3 |
Max. speed(MPM) |
1200 |
4 |
Max. number of drawing dies |
24 |
5 |
Mechanical reduction ratio |
9% |
6 |
Fixed-speed capstan reduction ratio |
6% |
7 |
Drawing capstan |
Ceramic coated |
8 |
Max. capstan dia.(MM) |
Φ120 |
9 |
Fixed-speed capstan dia.(MM) |
Φ120 |
10 |
Frame |
Cast |
11 |
Main machine power |
5.5KW |
12 |
Take-up power |
2.2KW |
13 |
Correction system |
Automatically control |
14 |
Dynamic control |
Double frequency converters control |
15 |
Transmission method |
Flat belt |
16 |
Lubrication system of drawing |
Immersing+Spary type |
17 |
Take-up bobbin size(MM) |
As per user’s requirement |
18 |
Brake |
Pneumatic brake |
