22DHT EDM brass fine wire drawing machine

Inlet diameter: Φ0.8mm-Φ1.2mm
Outlet diameter:Φ0.10mm-Φ0.32mm
Max. number of drawing dies: 22pcs
零售价
0.0
市场价
0.0
数量
-
+
1
Details

 Product Introduction

1_Suitable for brass EDM wire(hard/soft) production.

2_Horizontal drawing arrangement

3_High accuracy timing belt driving.

4_Take up bobbin can be designed according to the dimension of spool provided by customer.

 Technical Parameter

Inlet diameter Φ0.8mm-Φ1.2mm
Outlet diameter Φ0.10mm-Φ0.32mm
Max. drawing speed 1500mpm
Max.number of drawing dies 22pcs
Main machine power 18.5KW
Annealing power 12KVA
Annealing voltage & current DC80V 120A
Annealing method DC four section annealing
Take up power 3.7KW
Suitable spool Φ250mm
Take up capacity 10-20kg
Brake Pneumatic brake
Machine dimension 4700mm*1500mm*2050mm
Machine weight 4500KGS

 Product details

S/N Components Picture

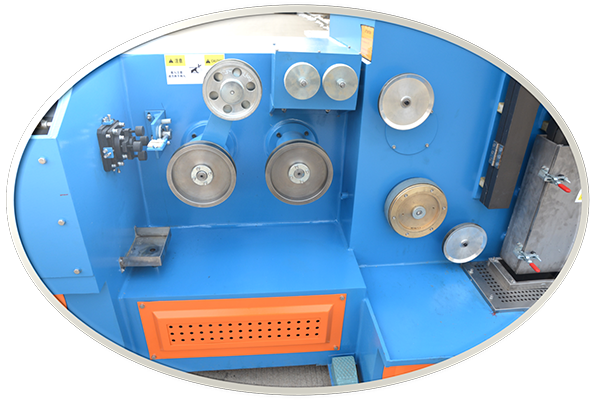

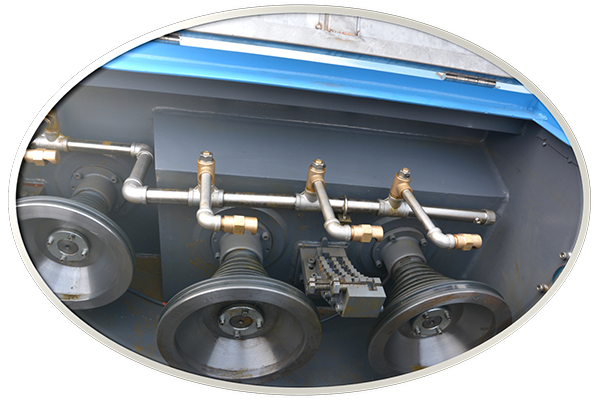

1 Capstan

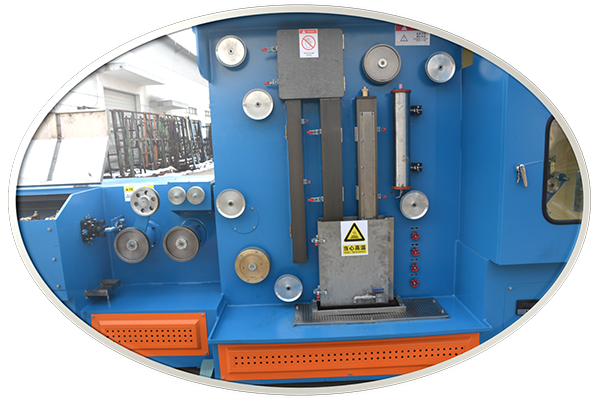

2 Fix speed capstan

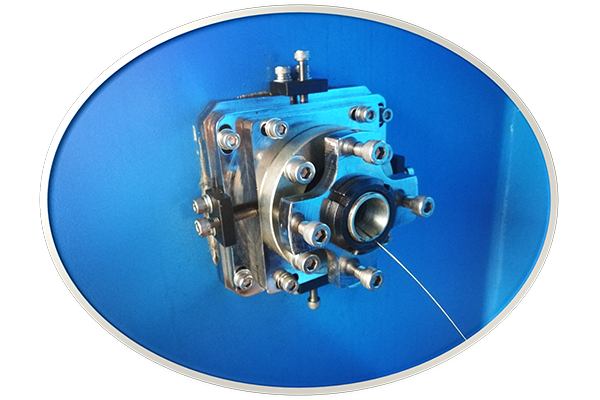

3 Straightening device
4 Annealing

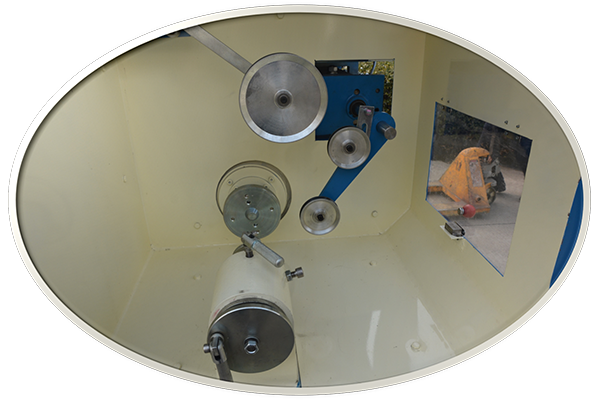

5 Take up
