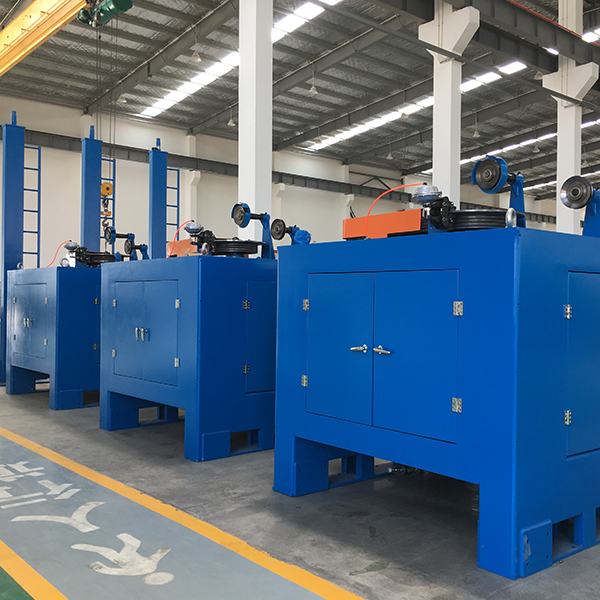

Drop coiler

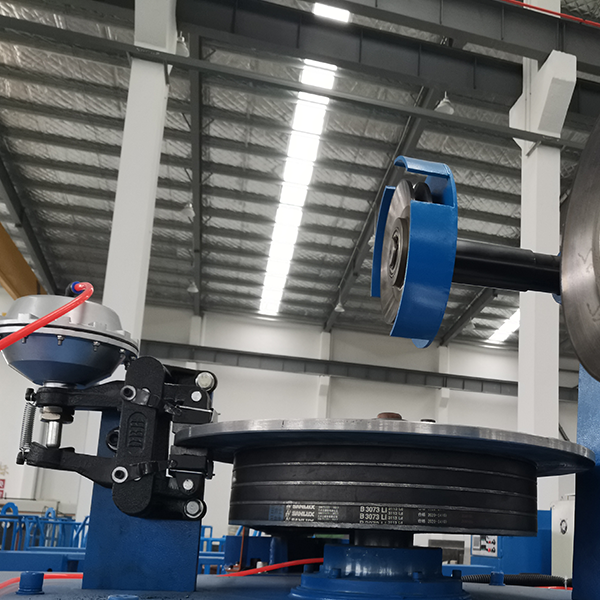

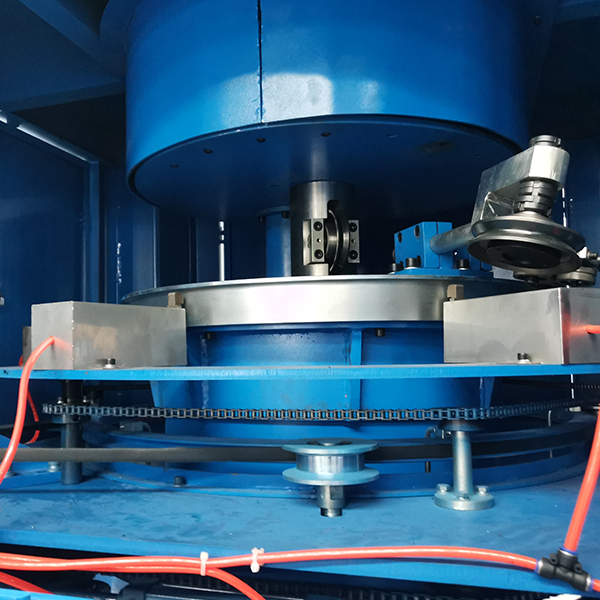

This take-up unit uses coiling way and main motor is DC motor, with features like convenient, easy, reliable and large capacity. The holder of spool-change which adopts a pneumatic way is flexible and reliable. It has an automatic localizer with three working position, that is preparing position, take up position and full-bobbin position. And there is a special rolling track for transportation of basket to get a smooth transportation while changing basket. With a quincunx style wiring and an automatic brake for cut-off, there is not any distinct tremble in high speed running. Surface is painted by carbonized tungsten.



Diameter of wire	Ф1.6mm-Ф3.5mm
Diameter of coiling wheel	Ф800mm
Max. capacity of coiler	1200kg-1800kg
Max. coiling speed	18m/s
Motor for coiler	15KW
Motor for traversing	0.37KW
Motor for conveyor	1.5KW
Dimension of basket	OD Ф1040mm×ID Ф480mm×H 1790mm





WF800 Drop coiler	1 set
Conveyor	1 set
Basket	2 pcs
