Wire rod twisting machine

Productintroduction LISTRONG-1000B/1250B/1600BWirerodtwistingmachineThe1000B/1250B/1600BWirerodtwistingmachineisdesignedwithhighproductivity,saveenergy,smallersize,lowernoiseetc. Application:Appliedfortwistingofsevenpcsorabove,suchas1)barecopperwires,2)tinnedwires,3)silverjacketedwires,4)enameledwires,5)doubletwistingforcorewires,canreplacetraditionaltubebunchingmachine.  Technicalparameters Model:LISTRONG-1000B/1250B/1600BWirerodtwistingmachineEquipmentmodels1000B1250B1600BTwistingusageApplyfortwistingofsevenpcsorabove,suchas1)barecopperwires,2)tinnedwires,3)silverjacketedwires,4)enameledwires,5)doubletwistingforcorewires.Singlewiredia(mm)0.30-2.140.5-2.540.5-2.52Strandingsectionarea(mm²)6.0~25.0 10.0~35.0 16.0~95.0 Corewiresinglewiredia(mm)2.0~5.03.0~6.03.0-10Corewirestrandingouterdia(mm)4.0~10.06.0~15.08.0~20.0Pitch(mm)35-200(12classes)50-250(12classes)80-350(12classes)DirectionoflayFreeforrightorleftTakeupbobbinOuterdia*bore*outerwidth1000*80*7501250*80*9501600*80*1180Maxrotatingspeed1000rpm(2000twist)800rpm(1600twist)600rpm(1200twist)Mainmotorpower18.5KW22KW30KWInverterpower18.5KW22KW30KWTensioncontrolTouchscreen+PLC+magneticpowderclutch,ensuretheconstanttensionfromemptytofullbobbinMagneticpowderclutch20kgf20kgf40kgfProtectionautomaticallybrake/stop1)wireinsideandoutsideisbroken2)thepresetlengthisarrivedBrakemodeElectromagneticbrakeTraversingmethodRollingwirewithringdriveunits,windingpitchandbreadthareadjustableOperationmodeTouchscreenoperationDimensionL*W*H(mm)4000*2200*21004500*2600*25005000*3000*3000   FAQQ:Howyoucanguaranteeyourmachinequality?A:Wehavestrictpre-inspectionandfinalinspectionregulations,partsarepurchasedfromfamousandreliablesuppliersonly,eachmachinebeforedispatchingmustbetestedwithrawmaterialtoensurethemachinewithoutanyproblem.Acceptanceinspectionbytheclientinourplantbeforedispatchingisalsowelcome.Weprovide12monthswarrantyperiodforbothmechanicalandelectricalparts. Packing&DeliveryPackagingdetails:Steelpallet.DeliveryTime:within60workingdaysafterconfirmingtheorderofthewiredrawingmachine.
零售价
0.0
市场价
0.0
数量
-
+
1
Details

 Product introduction

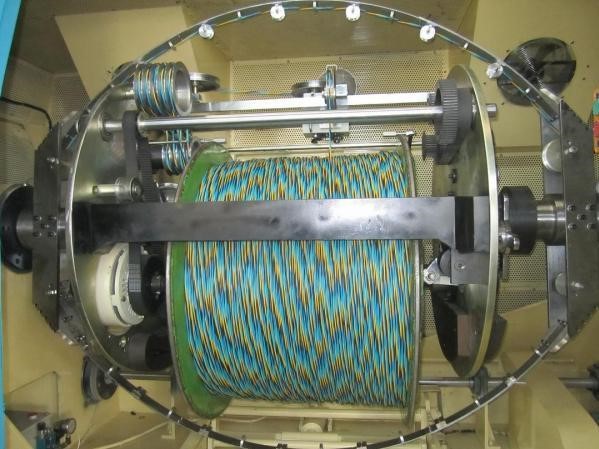

LISTRONG-1000B/1250B/1600B Wire rod twisting machine

The 1000B/1250B/1600B Wire rod twisting machine is designed with high productivity, save energy, smaller size, lower noise etc.

Application: Applied for twisting of seven pcs or above,

such as

1) bare copper wires,

2) tinned wires,

3) silver jacketed wires,

4) enameled wires,

5) double twisting for core wires,

can replace traditional tube bunching machine.



 Technical parameters

Model: LISTRONG-1000B/1250B/1600B Wire rod twisting machine

Equipment models

1000B

1250B

1600B

Twisting usage

Apply for twisting of seven pcs or above, such as 1) bare copper wires, 2) tinned wires, 3)silver jacketed wires ,4)enameled wires, 5)double twisting for core wires.

Single wire dia(mm)

0.30-2.14

0.5-2.54

0.5-2.52

Stranding section area(mm²)

6.025.0



10.035.0



16.095.0



Core wire single wire dia(mm)

2.05.0

3.06.0

3.0-10

Core wire stranding outer dia(mm)

4.010.0

6.015.0

8.020.0

Pitch(mm)

35-200(12 classes)

50-250(12 classes)

80-350(12 classes)

Direction of lay

Free for right or left

Take up bobbin

Outer dia*bore*outer width

1000*80*750

1250*80*950

1600*80*1180

Max rotating speed

1000rpm(2000twist)

800rpm(1600twist)

600rpm(1200twist)

Main motor power

18.5KW

22KW

30KW

Inverter power

18.5KW

22KW

30KW

Tension control

Touch screen+ PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin

Magnetic powder clutch

20kgf

20kgf

40kgf

Protection

automatically brake/stop 1)wire inside and outside is broken

2)the preset length is arrived

Brake mode

Electromagnetic brake

Traversing method

Rolling wire with ring drive units, winding pitch and breadth are adjustable

Operation mode

Touch screen operation

Dimension L*W*H(mm)

4000*2200*2100

4500*2600*2500

5000*3000*3000





 FAQ

Q: How you can guarantee your machine quality?

A: We have strict pre-inspection and final inspection regulations, parts are purchased from famous and reliable suppliers only, each machine before dispatching must be tested with raw material to ensure the machine without any problem. Acceptance inspection by the client in our plant before dispatching is also welcome. We provide 12 months warranty period for both mechanical and electrical parts.

 Packing & Delivery

Packaging details: Steel pallet.

Delivery Time: within 60 working days after confirming the order of the wire drawing machine.
