Tubular annealing machine

Suitable : Copper Wire or Alloy Wire
Number of Inlet Wire: 40pcs
Fit for Wire: 0.10-0.60mm
Annealing Method: Tube Annealing
Max Speed: 300m/min
零售价
0.0
市场价
0.0
数量
-
+
库存:
0
1
Details

▼ Product Introduction

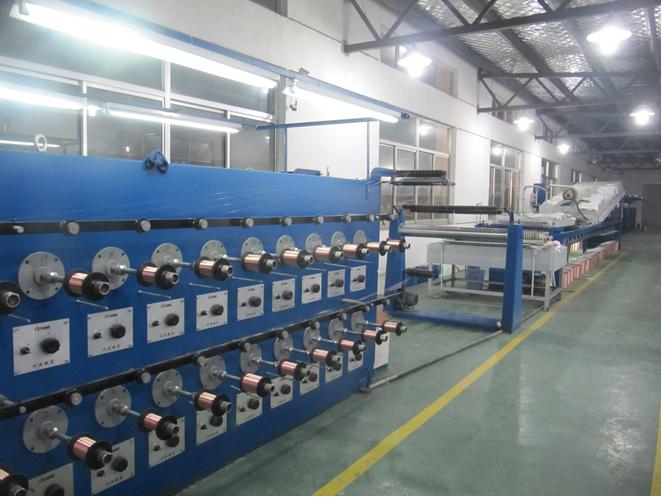

LISTRONG-40H Copper Wire Annealing Machine
Main parameters:
Fir for Wire: Copper Wire or Alloy Wire
Number of Inlet Wire: 40pcs
Fit for Wire: 0.10-0.60mm
Pay Off Bobbin: Dia. 300mm
Pay Off Method: Brush Pay Off
Annealing Method: Tube Annealing
Max Speed: 300m/min


Structure features of Copper Wire Annealing Machine
1. It is able to continuously annealing and tinning the copper wire.
2. Either tungsten steel die or diamond die can be equipped for tinning.
3. The heat preservation device for annealing furnace is designed to keep even temperature and save power.
4. The leading roller equipped with independent variable-speed motor, speed can be adjusted steplessly.
5. Take-up machine is horizontal design, easy to dismantle.
6. The 40-head take-up machine has top and bottom two layers, is of less cubage and save space; it has two independent traversing units for winding different size of tinned wires at the same time.


▼ Technical parameters



Model: LISTRONG-40H Copper Wire Continuous Annealing Machine

Serial No.

Item

Description

1

Twisting usage

Apply for the annealing of ultra-fine round copper wire and alloy wire.

2

Single wire dia (mm)

0.10~0.60mm

3

Max numbers of inlet wire

40

4

Linear speed

Max. 300m/min

5

Pay off method

Brush pay off

6

Pay off bobbin model

300bobbin

7

Annealing furnace length

3.5m-6.0m

8

Annealing method

Tube annealing

9

Annealing protection method

Water seal protection

10

Tinned method

Hot dip

11

Take up motor

Double speed torque motor

12

Take up bobbin size

5inch,8inch bobbin or 5inch,8inch,10inch bobbin,300 bobbin

13

Traverse control method

Stepless speed regulation motor+ turbine gear box control toothrow traverse

14

Power consumption

30~72 KW

15

Product dimension

21000L×2200W×1800H



▼ Packing & Delivery
